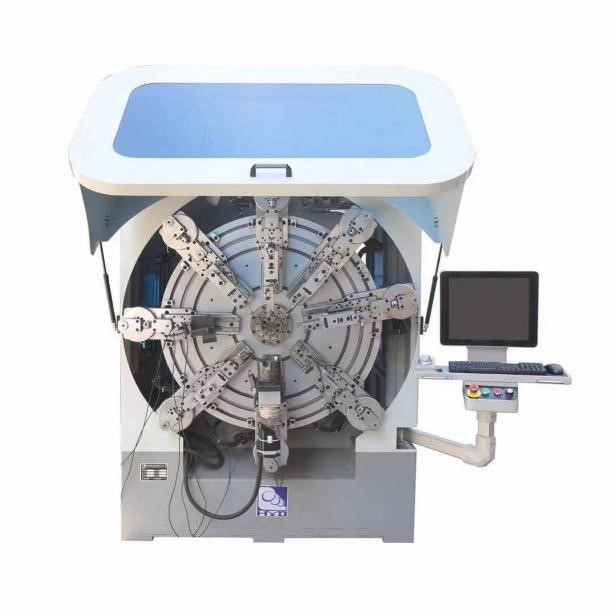

wire spring making machine parameters
| Model | HYD-40T-12A |
| Number of Axes | 12 Axes |
| Wire Diameter | 1.0-4.2mm |
| Wiire Feed Roller | 4 Pairs |
| Max Wire Feed Speed | 100m/min |
| Max Wire Feed Speed | ±0.15(Length) |
| Servo Motor Power | 27KW |
| Reducer | 11 Pcs |
| Decoiler | 500KG |
| Voltage | 380V |
| Machine size | 2100*2000*2000mm |
| Machine Weight | 3500KG |
wire spring making machine feature：
It is configured with a single axis servo motor for independent control, this design makes the position adjustment of the spring machine become arbitrary, with flexibility, especially suitable for processing those products with complicated corners. This not only greatly reduces the time required to adjust the machine, but also significantly improves the overall production efficiency.
The roller guide is selected from Taiwan Shangyin, which has a wide contact surface and excellent wear resistance, and can ensure that the machine can still maintain high precision in the process of long-term use.
The specially designed crimping function can be flexibly installed on the rotating core to achieve a function similar to the rotating wire, which is an indispensable tool for products that need to process more space angles. It can complete the task quickly and ensure the stability of the processing process.
More advanced is that the crimping function can also be further upgraded to internal and external rotation two-axis design. This innovation allows the machine to easily cope with the demands of circular machining with multiple internal corners, making it the first choice for the production of springs with complex shapes.
