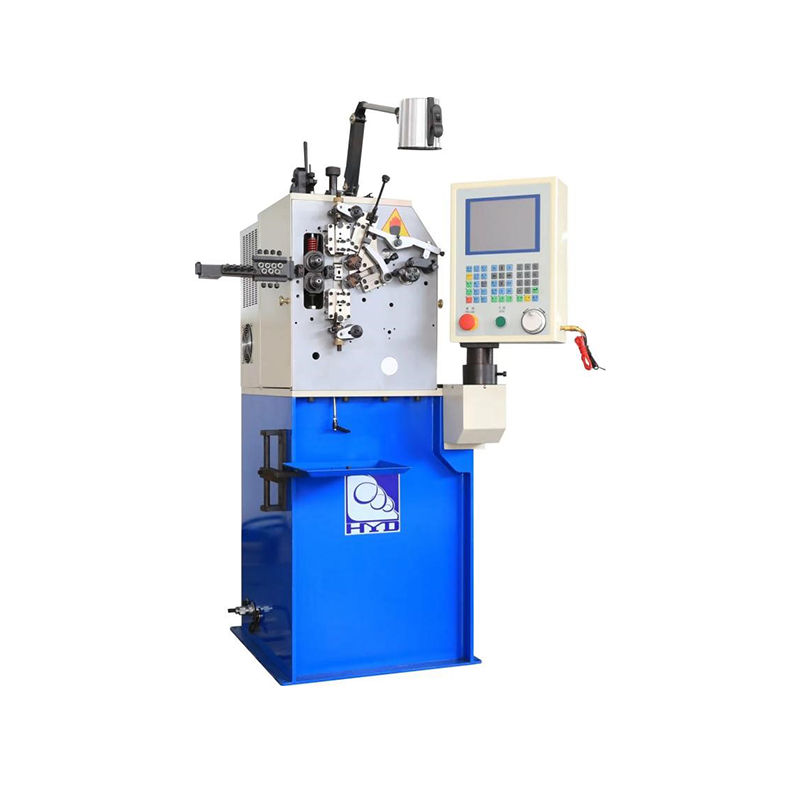

wire coiling machine

Name cnc wire coiling machine
brand HYD
Max Outside Diameter 25
Wire diameter 0.2-1.2mm
Machine size 1000*700*1500mm

wire coiling machine parameters:

Model HYD-212
Wire Diameter 0.2-1.2mm
Max Production speed 400pcs/min
Max Outside Diameter 25mm
X-axis motor output(wire feed) 1.2KW
Y-axis motor output(Cam) 1.0KW
Voltage 220V
Machine size 1000*700*1500mm
Machine Weight 500KG



wire coiling machine advantage

Economical choice: This wire coiling machine stands out among many models with its high price. Its production speed is amazing, up to 500 per minute, greatly improving production efficiency. At the same time, the debugging process is simple and fast, and even beginners can master it in a short time, reducing the operation threshold.

Efficient production experience: To further improve production efficiency, this model is equipped with an advanced automatic wire feed rack. This design allows the user to freely adjust the line speed according to the production speed of the machine, ensuring the smooth progress of the production process. More intimate is that when the material is wrapped or used up, the wire rack will automatically stop and issue a clear alarm, reminding the operator to deal with it in time, avoiding production interruption and waste

Intelligent configuration for high precision: For products with high length requirements, this spring coiler offers the option of a built-in or external length tester. Through the automatic correction and sorting function of the computer, it can ensure that the length of each product is consistent to meet the needs of high-precision production. This intelligent configuration not only improves product quality, but also reduces the difficulty and error rate of manual operation.

Reviews

There are no reviews yet.

Be the first to review “wire coiling machine”

Your email address will not be published. Required fields are marked *

Unable to find spring machine that meet your needs, please let us know, we support processing customization

Frequently Asked Questions

Yes, our spring machine and bending machine, tempering furnace have CE certificate.

The standard voltage of our machine is 380V, and transformers can be equipped according to different voltages in each country.

Our company has 4 R&D personnel, which can be customized according to your needs.

Different countries have different trading methods, generally FOB and CIF, according to customer requirements to choose.

Our company has 3 full-time after-sales service personnel, professional answer customer feedback questions. We have a one-year warranty for the export of the machine. If there is a problem during the warranty period, we provide free accessories and video guidance for customers to disassemble and assemble. If there is a local agent, the agent will be arranged to go to the scene to guide and solve the problem.

Different models, the number of donated knives is also different, generally 4-10 sets of gifts.
