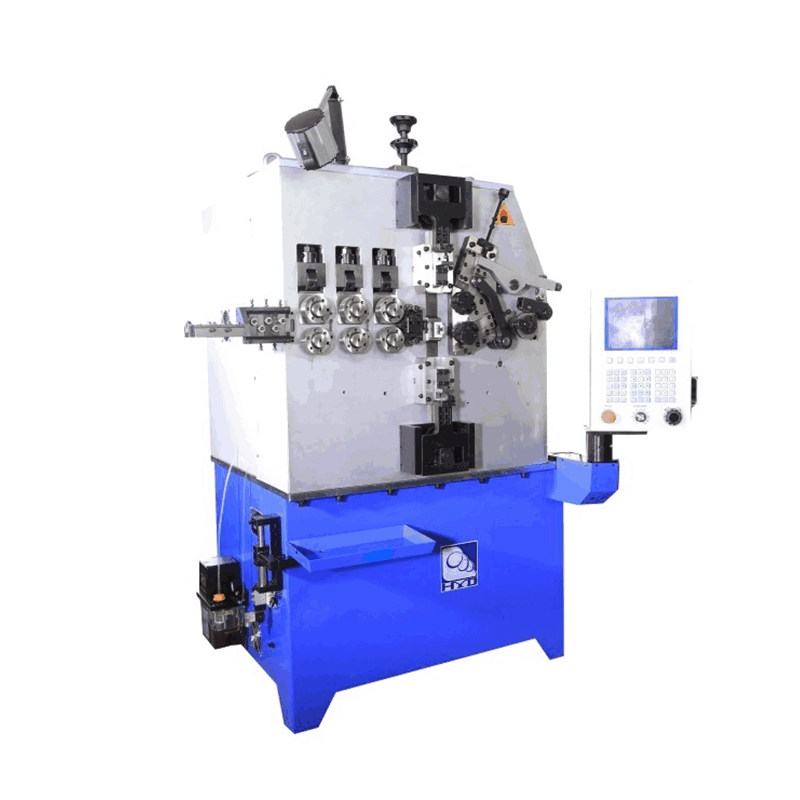

Our spring torsional machines can produce springs in a wide range of precise sizes and specifications. The minimum wire diameter can be 0.2mm, and the touch panel and control system ensure fine operation, precise winding, and consistent spring quality.
Torsion spring machine parameters
| Wire size | 0.2-2.3mm |
| Max feeding speed | 141m/min |
| Direct storage programs | 1000 |
| X-axis motor output | 2.7KW |
| Y-axis motor output | 2.7KW |
| Z-axis motor output | 1.0KW |
| Spinner | 0.4KW |
| Cutter | 1 KW |
| Angle rotor | 1 KW |
| Machine size | 1400×900×1600mm |
| Voltage | 380V |
| Weight | 700kg |
Main features:
- CNC accuracy: Through intuitive programming and control, high precision spring size is achieved, with a minimum wire diameter of 0.2mm.
- High-speed production: Optimize the manufacturing speed without affecting the quality, with a maximum speed of 141m/min.
- Durable construction: The use of high-grade carbon steel material, in continuous operation has a durable performance.
- User-friendly interface: multi-language panel, touch control, easy to set up and operate.

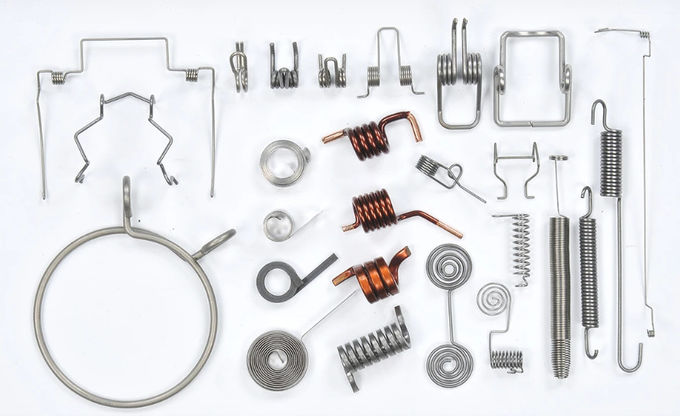

Applications:
- Automotive torsion springs
- Industrial machinery components
- Consumer electronics
- Door and window mechanisms
