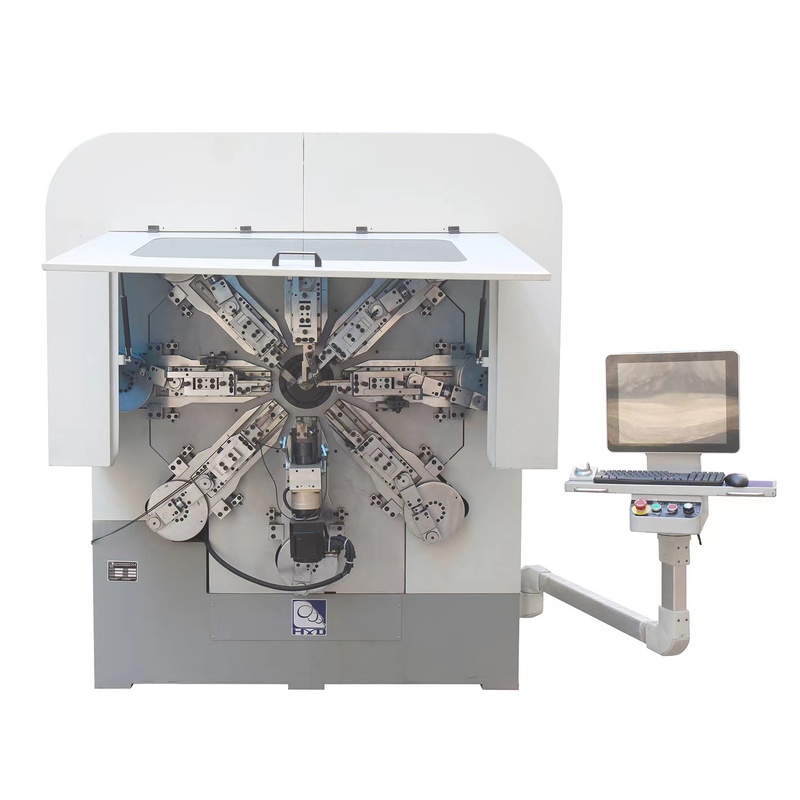

Elevate your production capabilities with the HYD-60T-12A Torsion Spring Coiling Machine, engineered for high-precision torsion spring manufacturing. Ideal for industries such as automotive, electronics, and industrial machinery, this machine combines cutting-edge technology with powerful performance to meet the demanding requirements of spring production.
Machine parameters
| Technical Specification | Details |
|---|---|
| Model | HYD-60T-12A |
| Wire Size | Low-carbon Steel: 3-8mm High-carbon Steel: 2-6mm |
| Servo Motors | 12 axes |
| Lead Rail | Itineraries: 210mm |
| Wire Feed Roller | 4 Pairs |
| Maximum Error | ±0.2mm (Length) |
| Max Wire Feed Speed | 80m/min |
| Control System | 1 Set |
| Decoiler Capacity | 1000KG |
| Reducers | 11 Pieces |
| Servo Motor Power | 50.7KW |
| Motor Brand | Sanyo |
| Shortest Angle Length | 4 Times Wire Diameter |
| Power Supply | 380V ±10%, 50Hz |
| Machine Dimensions | L4000mm x W2150mm x H2300mm |
| Machine Weight | 4500KG |
Key Features:
- Advanced CNC Control: With 12 axes servo motors, this machine ensures maximum precision and reliability for complex torsion spring geometries.
- Wide Wire Size Range: Handles low-carbon steel (3-8mm) and high-carbon steel (2-6mm), offering versatility for different types of springs.
- High-Speed Production: Achieve up to 80 meters per minute wire feed speed, optimizing your production line.
- Precision Accuracy: With a maximum error of just ±0.2mm (length), it ensures exact spring dimensions for all applications.
- High-Capacity Decoiler: Equipped with a 1000KG decoiler to ensure smooth wire feeding and uninterrupted operations.
- Powerful Servo Motor: The 50.7KW motor power from Sanyo delivers consistent performance under high-demand conditions.
- Durable Build: Designed for longevity with 11 reducers and 4 pairs of wire feed rollers, the machine guarantees efficient operation.
- Compact & Robust Design: Measuring 4000mm (L) x 2150mm (W) x 2300mm (H), the machine fits into a variety of production environments while maintaining robust performance.
Applications:
- Automotive: Torsion springs for automotive components such as seat mechanisms, latches, and more.
- Electronics: Precision torsion springs used in switches, actuators, and small appliances.
- Industrial Equipment: Heavy-duty torsion springs for machinery and equipment.
