Extension springs are a fundamental type of mechanical spring engineered to resist pulling forces. Their core functionality lies in storing energy during tensioning—when a load pulls the spring, it stretches and retains that energy, then releases it to return to its original shape once the load is removed. This ability to stretch repeatedly without losing structural integrity or efficiency makes them indispensable in countless mechanical systems.
Typically crafted from coiled wire (often steel), extension springs excel at providing controlled restoring force. They appear across industries: from automotive door mechanisms to household appliances and industrial machinery. Whether it’s maintaining tension in a door closer, balancing loads in conveyor systems, or enabling precise movements in small tools, their reliability ensures smooth operation in systems that depend on consistent tension.
Types of Extension Springs
Understanding the different types of extension springs is key to matching them to specific application needs. Each variant is designed with unique features to address distinct mechanical requirements.

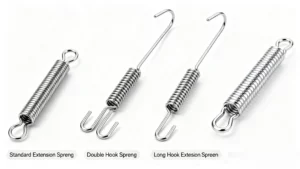

Standard Extension Springs
Standard extension springs are the most widely used variant, defined by their simple coiled structure. They are commonly manufactured from materials like carbon steel, stainless steel, or alloy steel—chosen based on the required strength, durability, and environmental resistance.
These springs perform optimally in applications that demand moderate tension and regular stretching cycles. Examples include garage door assemblies (where they help lift and lower doors smoothly), automotive components (such as seat adjusters), and household items like clothespins. Their versatility and cost-effectiveness make them a go-to choice for general-purpose tension needs.
Double Hook Spring
A double hook spring stands out for its dual-hook design—with hooks molded or formed at both ends. These hooks serve as stable attachment points, allowing the spring to connect to two separate components in a system. This design ensures even force distribution, preventing uneven stress that could damage the spring or surrounding parts.
Double hook spring applications include door hardware (where they keep doors aligned while closing), mechanical linkages in industrial equipment, and automotive systems (like trunk lid supports). They work equally well in light-duty tasks (e.g., small tool latches) and heavy-duty operations (e.g., machinery tensioning), thanks to their secure attachment and balanced force delivery.
Long Hook Extension Spring
A long hook extension spring is distinguished by its extended hooks—either on one or both ends. These longer hooks solve a critical challenge: they enable attachment to components that are spaced farther apart, or in systems where installation flexibility is limited.
The extended hook design also reduces the risk of overstretching or deformation during use, making long hook extension spring ideal for high-precision applications. Common uses include heavy machinery (where parts are widely positioned), industrial conveyors, and trampoline systems (where the spring must connect the frame to the jumping mat securely). They also work well in outdoor equipment, where their design accommodates variable installation spaces.
Stainless Extension Spring
A stainless extension spring is made from corrosion-resistant stainless steel alloys, making it the top choice for harsh environments. Unlike standard steel springs, it resists rust, chemical damage, and wear caused by moisture, extreme temperatures, or exposure to cleaning agents.
Stainless extension spring applications include marine systems (where saltwater would corrode other springs), medical devices (that require sterility and durability), and outdoor machinery (like lawnmowers or irrigation systems). It is also critical in industries like food processing and pharmaceuticals, where hygiene and long-term performance are non-negotiable. Even in humid or chemical-rich settings, this spring maintains its tension capacity and lifespan.
Specialty Extension Springs
Beyond standard types, specialty extension springs are custom-designed for unique needs. They may feature custom hook configurations (e.g., bent or angled hooks), high-performance materials (like high-carbon steel or titanium alloys), or protective coatings (such as zinc plating for extra rust resistance).
These springs are essential in industries where precision is paramount: aerospace (for aircraft control systems), robotics (for delicate mechanical movements), and electronics (for small-scale devices like smartphones). Manufacturers tailor them to specific tension limits, weight requirements, and space constraints—ensuring they fit applications where off-the-shelf springs would fail.
Common Sizes and Specifications of Extension Springs
Extension springs come in varied sizes, each optimized for specific force and space needs. Choosing the right size directly impacts a system’s performance and safety.

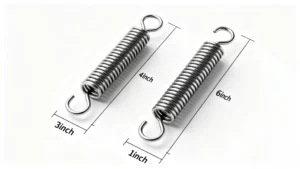

6 Inch Extension Spring
The 6 inch extension spring is one of the most popular sizes for general-purpose use. Its length balances moderate tension capacity with compactness, making it suitable for small to mid-sized mechanical systems.
Typical applications include lawnmower pull cords (where it provides the force to start the engine), door closers (for residential or light commercial doors), and small machinery (like bench grinders). It excels in scenarios where tension needs to be exerted over a limited range of motion—offering enough stretch to accommodate movement without compromising strength.
3 Inch Extension Springs
3 inch extension springs are compact, lightweight, and designed for small-scale applications. Their short length makes them ideal for systems where space is at a premium, as they can fit into tight compartments without sacrificing tension.
Common uses include toys (e.g., wind-up cars or action figures), small appliances (like coffee maker latches), and medical devices (such as portable oxygen tank valves). They provide precise, low-to-moderate tension—perfect for delicate mechanisms that require gentle but consistent force.
Large vs. Small Extension Springs
Large extension springs (often longer than 6 inches) are built for industrial-grade applications that demand high tensile strength. They are used in heavy machinery (like construction equipment), conveyor systems (to balance heavy loads), and large-scale automation (such as factory assembly lines). Their robust design allows them to withstand extreme tension and repeated use in high-stress environments.
Small extension springs (including 3 inch extension springs and shorter variants) are for light-duty tasks. They power small tools, household gadgets, and 微型电子设备 (microelectronic devices), where excessive force would damage components. The choice between large and small springs depends on two key factors: the amount of force required, and the distance the spring needs to stretch during operation.
The Different Types of Hooks in Extension Springs

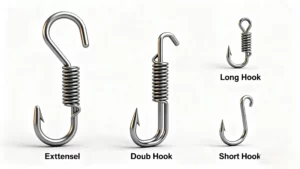

The hooks on an extension spring are not just attachment points—they dictate how the spring connects to a system, distributes force, and performs over time. Understanding different types of hooks is critical for proper installation and functionality.
Single Hook vs Double Hook
A single hook extension spring has one hook (on either end), while a double hook spring has hooks on both ends. The key difference lies in force distribution and attachment flexibility:
- Single hook springs are used when the load is applied to one end (e.g., a pull cord that only needs to connect to a single component). They are common in small tools (like hand drills) or simple mechanisms (such as a cabinet latch).
- Double hook spring variants excel at balanced force delivery. They are ideal for systems where the spring must connect two moving parts (e.g., a door hinge and frame) or maintain even tension (like a garage door cable system). The dual hooks ensure the spring stays aligned and reduces stress on individual components.
Long Hook vs Short Hook
Long hooks (as seen in long hook extension spring) and short hooks cater to different installation needs:
- Long hooks provide extra length, making them perfect for components that are spaced far apart or hard to reach. They also offer more flexibility during installation—allowing adjustments to ensure a secure fit. Long hook extension spring uses include industrial machinery (where parts are widely positioned) and outdoor equipment (like playground swings).
- Short hooks are designed for compact systems. They fit into tight spaces (e.g., inside small appliances or electronic devices) and connect to components that are close together. Short hooks minimize the spring’s overall footprint while maintaining reliable attachment.
Custom Hooks for Specific Applications
For unique or specialized systems, custom hooks are the solution. Manufacturers can adjust the hook’s length, shape (e.g., J-hooks, loop hooks, or angled hooks), and thickness to meet exact requirements. Custom hooks may be designed to:
- Provide a tighter grip on components (preventing slippage in high-vibration systems).
- Reduce stress on the spring (by distributing force more evenly at the attachment point).
- Fit non-standard component shapes (e.g., irregularly sized brackets in aerospace equipment).
These hooks ensure the extension spring integrates seamlessly into custom machinery—avoiding the inefficiencies or failures that come with using ill-fitting standard hooks.
The Role of Extension Springs in Industrial Applications
In industrial settings, extension springs are workhorses—enabling critical functions that keep machinery and processes running. Their ability to store and release energy reliably makes them irreplaceable in high-demand environments.
Industrial Tension Springs
Industrial tension springs are a subset of extension springs engineered for heavy-duty industrial use. They are built to withstand extreme tension, frequent cycling, and harsh conditions (like high temperatures or dust).
Key applications include:
- Load balancing: In cranes or hoists, they offset the weight of heavy loads to reduce strain on motors.
- Opening/closing mechanisms: In factory doors or machine hatches, they provide the force to open or close components smoothly.
- Resistance against compression: In hydraulic systems, they counteract compression forces to maintain pressure stability.
Industrial tension springs are critical in manufacturing, automotive, and automation industries—where downtime is costly and reliability is non-negotiable.
Applications in Manufacturing, Automotive, and More
Extension springs have far-reaching uses across industries:
- Automotive: They power trunk hood supports (keeping lids open), seat adjusters (allowing smooth movement), and window regulators (raising/lowering windows). Stainless extension spring variants are also used in undercarriage components to resist road salt corrosion.
- Manufacturing: In assembly lines, they tension conveyor belts to prevent slippage; in packaging machines, they control the speed of product movement. Double hook spring models are common here, as they ensure balanced tension in continuous-operation systems.
- Robotics: Small, precision extension springs (often with custom hooks) enable delicate movements in robotic arms or grippers—ensuring accuracy in tasks like product sorting or circuit board assembly.
Their versatility means they adapt to nearly any industrial need, from heavy machinery to micro-scale devices.
Use in Machinery and Equipment
In heavy machinery (e.g., construction excavators, mining equipment, or agricultural tractors), extension springs play a vital role in controlled movement. For example:
- In tractor plows, they adjust the plow’s depth by maintaining tension on the lifting mechanism.
- In mining conveyors, large extension springs absorb shock from heavy loads, preventing damage to the belt or frame.
- In factory presses, they return moving parts to their original position after each cycle—ensuring consistent performance.
Without these springs, machinery would struggle with imprecise movements, increased wear, and frequent breakdowns.
Manufacturing and Machinery Behind Extension Springs
Creating high-quality extension springs requires precision machinery and a structured process—each step ensures the spring meets strength, tension, and durability standards.
Extension Spring Machine
An extension spring machine is the core tool for manufacturing extension springs. It automates the process of coiling wire into the desired shape and size, with precise control over:
- Coil tightness: Ensures the spring stores energy efficiently.
- Hook placement: Positions hooks accurately (critical for double hook spring or long hook extension spring variants).
- Tension capacity: Adjusts wire tension during coiling to meet specific force requirements.
Modern extension spring machine models use computer programming to replicate designs consistently—even for high-volume production. This automation guarantees that every spring matches the exact specifications, from wire gauge to hook angle.
Tension Springs Machine
A tension springs machine is specialized for producing industrial tension springs and other high-tension extension springs. Unlike general extension spring machine tools, it focuses on:
- High-tensile wire handling: Processes thicker, stronger wires (used in industrial springs) without breaking or deforming.
- Force calibration: Tests and adjusts the spring’s tension capacity during production, ensuring it meets industry standards (e.g., pounds of force per inch of stretch).
- Durability enhancements: Integrates steps like heat treatment to strengthen the spring, making it suitable for heavy-duty use.
Tension springs machine systems are essential for industries like construction and manufacturing, where springs must withstand extreme stress.
The Manufacturing Process
The production of extension springs follows a structured, quality-focused workflow:
- Material Selection: Choose wire material (e.g., carbon steel for standard springs, stainless steel for stainless extension spring) based on application needs.
- Wire Preparation: Straighten and cut the wire to the required length, ensuring uniformity.
- Coiling: Use an extension spring machine (or tension springs machine for high-tension models) to coil the wire into the desired shape. Hooks are formed at this stage—whether standard, long (for long hook extension spring), or double (for double hook spring).
- Heat Treatment: Temper the spring in an oven to improve strength and flexibility. This step prevents the spring from breaking or losing shape during use.
- Quality Testing: Check the spring’s tension capacity, hook strength, and dimensional accuracy. Failed springs are discarded to maintain quality.
- Finishing: Apply coatings (e.g., zinc plating for rust resistance) or polish the spring, depending on the application.
This process ensures every extension spring—from a small 3 inch extension spring to a large industrial tension spring—meets the highest performance standards.
Conclusion
Extension springs are versatile, essential components that power countless mechanical systems across industries. Their diversity—from stainless extension spring for harsh environments to double hook spring for balanced force—ensures there is a solution for nearly every tension need. Key sizes like 3 inch extension springs (for compact applications) and 6 inch extension spring (for general use) further expand their utility, while different types of hooks (long, short, custom) enable seamless integration into unique systems.
Behind these springs lies advanced machinery: extension spring machine and tension springs machine tools that guarantee precision and consistency in manufacturing. In industrial settings, industrial tension springs keep heavy machinery running smoothly, while specialty variants support innovation in aerospace, robotics, and electronics.
Understanding the types, sizes, hooks, and manufacturing of extension springs is critical for selecting the right component—whether for a household appliance, a car, or a factory conveyor. With their ability to store and release energy reliably, extension springs will remain a cornerstone of mechanical design for years to come.
