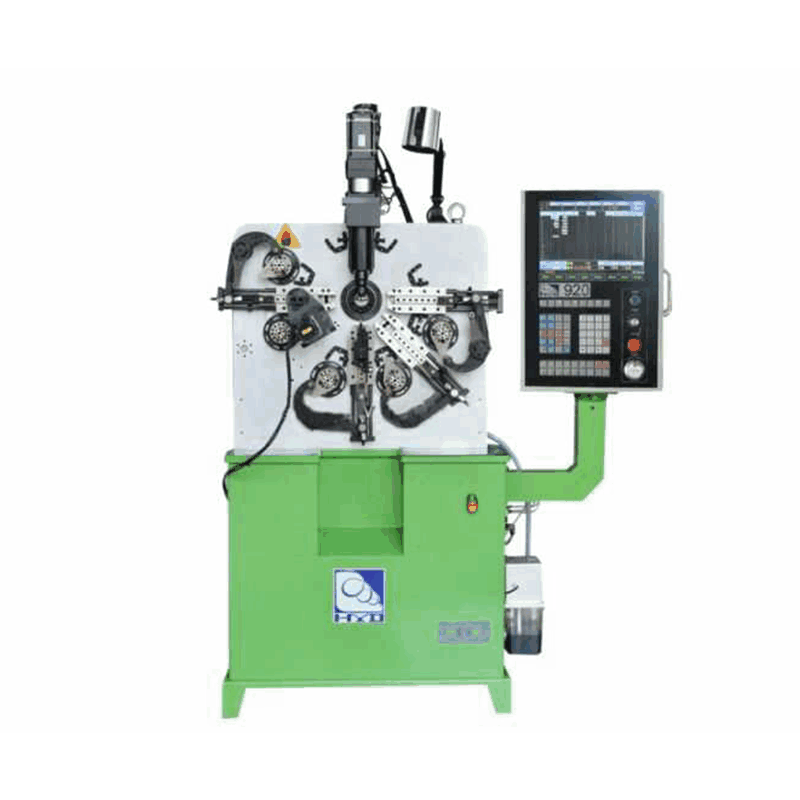

Telescopic Spring Manufacturing Machine

Boost your production capabilities with the HYD-80T-13A Telescopic Spring Manufacturing Machine—a heavy-duty, multi-axis CNC spring coiler engineered for precision forming of telescopic, conical, and compression springs. This advanced spring machine supports large wire diameters and integrates 13 servo axes for high-speed, high-accuracy performance in demanding manufacturing environments.

Key Specifications:

• Wire Diameter Capacity:
   • Low-Carbon Steel: 5–10mm
   • High-Carbon Steel: 3–8mm

• Servo Axes: 13 high-precision servo motors (Sanyo brand)

• Maximum Wire Feed Speed: 80 meters per minute

• Feed Rollers: 4 pairs for stable, consistent wire control

• Shortest Bending Length: 4× wire diameter

• Maximum Length Error: ±0.2mm

• Decoiler Capacity: 1000KG

• Total Servo Motor Power: 68.5KW

• Power Supply: 380V ±10%, 50Hz

• Machine Dimensions: L5500 × W2200 × H2400mm

• Weight: 8000KG

Product Advantages:

• CNC Precision: 13-axis control system ensures accurate forming of complex spring geometries.

• Robust Build: Heavy-duty construction for long-term industrial use and continuous production cycles.

• Flexible Application: Capable of forming a wide range of telescopic and compression springs.

• High Efficiency: Fast wire feeding with advanced servo coordination for increased throughput.

• User-Friendly Interface: Intuitive control system for easy operation and parameter adjustments.

Ideal For:

• Telescopic mechanisms

• Adjustable tools and devices

• Large-diameter spring applications

• Automotive, furniture, and aerospace industries

Enhance your spring production line with the HYD-80T-13A CNC Telescopic Spring Coiling Machine — a powerful, precision-driven solution for high-volume spring manufacturing. Contact us now for detailed specifications, factory pricing, or to request a demo.
