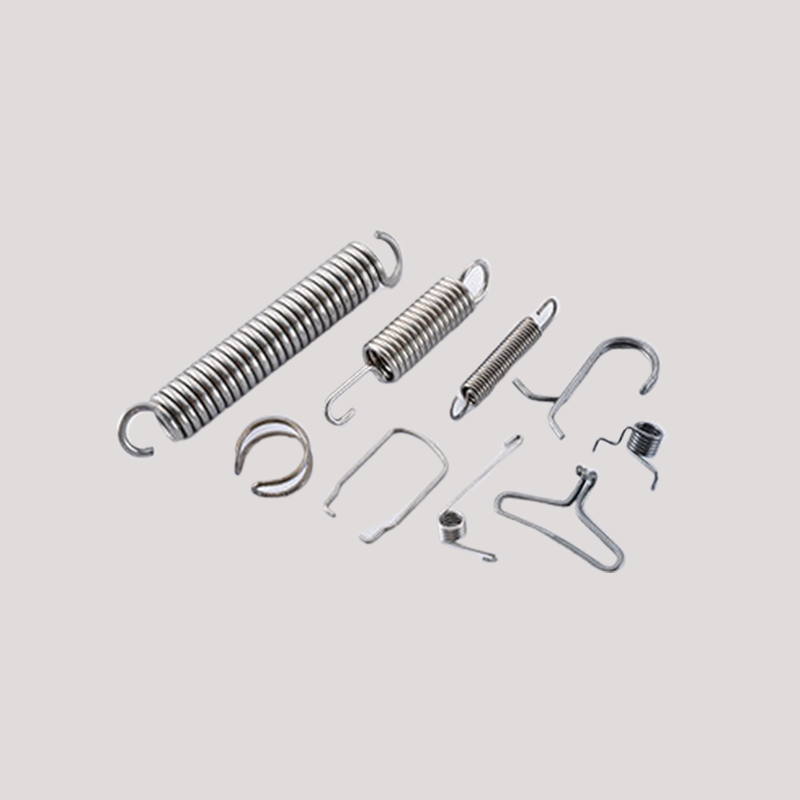

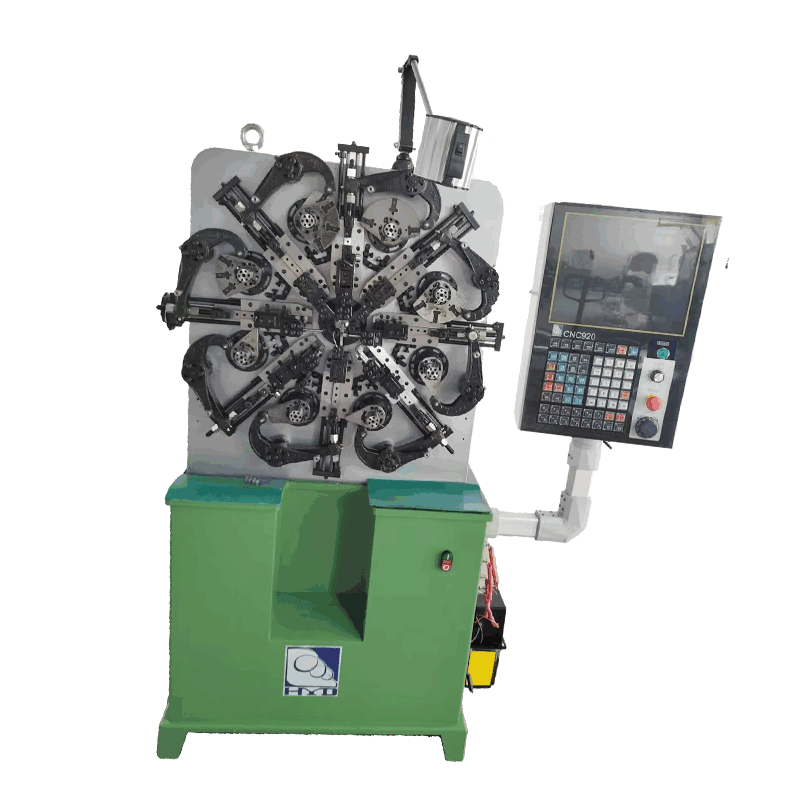

Achieve unparalleled accuracy and efficiency with our Spring Winding Machine, designed for producing various types of springs such as compression springs, extension springs, torsion springs, and wire forms.
spring winding machine parameter
| Model | HYD-25T-10A | HYD-25T-12A |
| Number of Axes | 10 Axes | 12 Axes |
| Wire Diameter | 0.3-2.5mm | 0.3-2.5mm |
| Wiire Feed Roller | 2 Pairs | 2 Pairs |
| Max Wire Feed Speed | 110m/min | 110m/min |
| Max Wire Feed Speed | ±0.05(Length) | ±0..05(Length) |
| Servo Motor Power | 10KW | 13.4KW |
| Reducer | 7 Pcs | 9 Pcs |
| Decoiler | 150KG | 200KG |
| Voltage | 380V | 380V |
| Machine size | 1400*950*1700mm | 1710*2450*2010mm |
| Machine Weight | 900KG | 1300KG |
spring winding machine feature：
Advanced motor control system: easier to operate than CAM drive, save adjustment time, ensure accurate wire feeding and winding, and ensure consistent spring quality.
Wide line diameter range: Compatible with 0.3 mm to 2.5 mm line diameter, to meet different applications.
High-speed operation: Increases productivity without compromising accuracy.
User-friendly interface: The control system interface can be set to the language of the customer’s country and has an intuitive touch screen panel for easy operation and programming.
Versatile: capable of producing complex spring geometry and custom wire forms.
Equipped with free hand: can move left and right, up and down, folding Angle fast. When processing more complex products, 8 arms are not enough, and the free hand can make up for it.
Taiwan rail series: Good rigidity, accurate operation, low noise, minimize maintenance needs, improve performance.
