spring making machine

5 axis spring manufacturing machine parameters

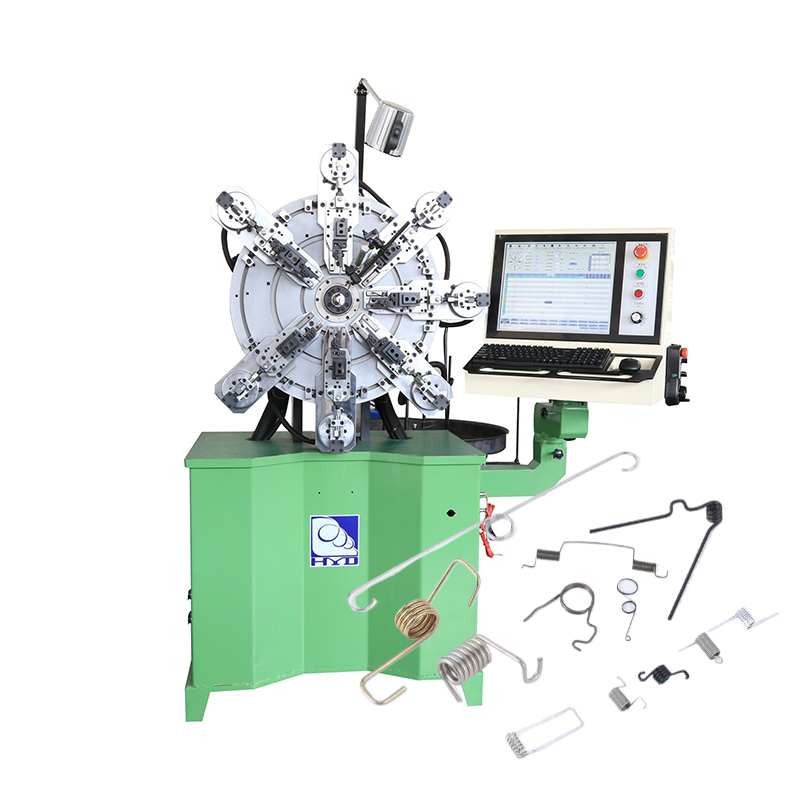

The spring making machine consists of a main engine, a computer control system and a servo motor, representing a harmonious integration of mechatronics and optical technology tailored for spring manufacturing. Computer controllers facilitate multi-axis (three or more) motion control, effectively and precisely directing the associated motion components to produce a wide variety of springs. Specifically, the HYD-20T model can be flexibly configured with three, four or five axes according to user specifications.

spring making machine Main features:

• Line diameter processing range of 0.2 ~ 2.3 mm, can adapt to a variety of production needs.
• Accuracy and quality are ensured through the use of computer controllers driven by Sanyo Electric (Japan) motors.
• The HYD-20T-3A variant includes basic components such as wire feeds, cams, and feather shafts. The HYD-20T-4A is further enhanced with an additional rotating shaft. At the same time, the HYD-20T-5A adds an additional wire rotating shaft to the 4A model, making it possible to produce more complex spring designs.
• Equipped with standard 150kg decolorizer, it can also be customized according to the specific requirements of customers. Each unit is equipped with a complete set of tools suitable for its operation.

Applications:

• Home Appliances: This machine is widely utilized in the production of home appliances such as refrigerators, washing machines, and air conditioners.
  Specialized Fields:
• Medical Equipment: It plays a crucial role in the manufacturing of medical devices and equipment.
• Aerospace: The precision and versatility of this machine make it ideal for use in the aerospace industry.
  Automotive: It is also extensively used in the automotive sector for the production of various components.
