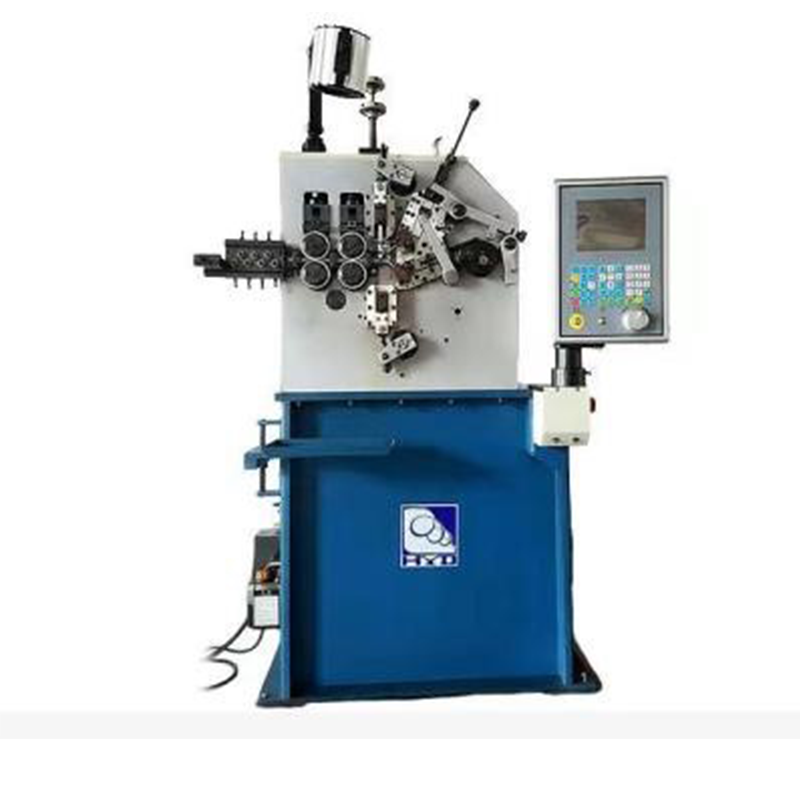

The HYD-25T-10A Small Spring Making Machine is a compact and intelligent CNC solution engineered for high-precision and high-efficiency spring production. With its advanced 10-axis control system and support for wire diameters from 0.3mm to 2.5mm, this model is ideal for producing compression springs, tension springs, torsion springs, and complex wire forms with exceptional accuracy.
Equipped with Sanyo’s reliable control system, dual pairs of wire feed rollers, and a max wire feed speed of 70 meters per minute, the HYD-25T-10A ensures smooth feeding, precise coiling, and outstanding repeatability. Its production precision reaches ±0.03mm, making it suitable for industries with strict dimensional requirements.
| Model | HYD-25T-10A |
| Number of Axes | 10 Axes |
| Wire Diameter | 0.3-2.5mm |
| Lead Rail | distance of 80MM |
| Wire Feed Roller | 2 pairs |
| Maximum Change | ±0.03(length) |
| Max Wire Feed Speed | 70m/min |
| Control System | Sanyo |
| Shortest Angel Length | 4 Times Wire Diameter |
| Machine Weight | 1300KG |
| Machine Dimension | 1400*1400*1700mm |
Applications:
Perfect for electronics, automotive components, medical devices, hardware tools, and small spring prototyping or mass production.
The HYD-25T-10A combines intelligent automation, high-speed operation, and compact design—ideal for manufacturers seeking precision, space efficiency, and versatility in one spring forming machine.
