Small spring machine

Name small spring making machine
brand HYD
shaft 4
Wire diameter 0.2-2.3mm
Application Industries Electronics, automotive, medical
Tolerance Accuracy ±0.01 mm

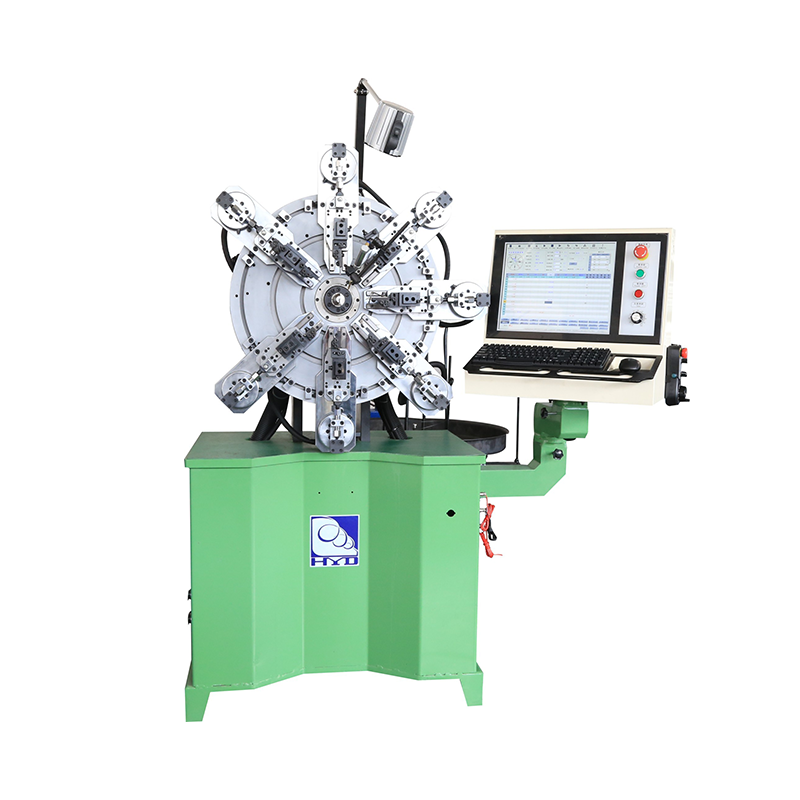

The spring machine consists of a host machine, a computer control system, and a servo motor. It’s a spring device that combines mechatronics with optics. The computer controller can regulate the movement of more than two axes to drive related motion units and generate a variety of springs with high efficiency and precision, making it a suitable product for spring production.This HYD-20T machine can be configured with three, four, or five axis based on your requirements.

Model Features:

1.Its production wire diameter ranges from 0.2 to 2.3 mm.

2.Computer controller control.Using Japanese Sanyo electric motor, High precision and quality.

3.HYD-20T-3A includes wire feeding, cam, and quill axis.HYD-20T-4A adds an extra spinner axis.The HYD-20T-5A adds an additional wire rotation axis to the 4A to allow more sophisticated spring supports.

4.The machine is equipped with a 150kg decolier as standard and can be customized according to customer needs.And each machine comes with corresponding tools.

Model HYD-20T-4A
Wire Diameter 0.2-2.3mm
Max feeding speed 141m/min
Program Storage Volume 1000
X-axis motor output 2.7KW
Y-axis motor output(Cam) 2.7KW
Z-axis motor output(Quill) 1.0KW
A-axis motor output(Spinner) 0.4KW
Voltage 380V
Machine size 850*1350*1700mm
Machine Weight 700KG

Application:

Widely used in home appliances, medical, aerospace, automotive and other industries,such as refrigerators, washing machines, and air conditioners.

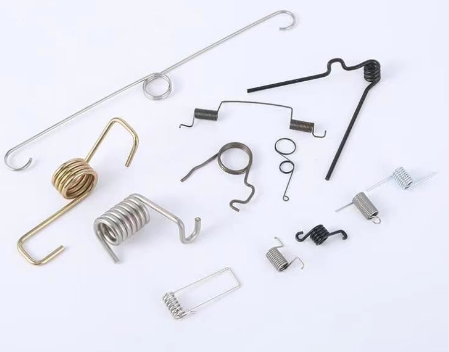

Samples:



HYD team serve:

  • 1.The machine can be modified to meet the needs of the client.And engineers set up the required products according to client needs.
  • 、The competent and patient consulting service will assist you in finding the best solution for your needs.We provide technical support by email, phone, and so on.And HYD offers free training at its production base.
  • Quick and safe transportation based on your specifications, including booking, container loading, and shipping paperwork.Before shipment, images and videos of the equipment in action will be supplied for confirmation.

Reviews

There are no reviews yet.

Be the first to review “Small spring machine”

Your email address will not be published. Required fields are marked *

Unable to find spring machine that meet your needs, please let us know, we support processing customization

Frequently Asked Questions

Yes, our spring machine and bending machine, tempering furnace have CE certificate.

The standard voltage of our machine is 380V, and transformers can be equipped according to different voltages in each country.

Our company has 4 R&D personnel, which can be customized according to your needs.

Different countries have different trading methods, generally FOB and CIF, according to customer requirements to choose.

Our company has 3 full-time after-sales service personnel, professional answer customer feedback questions. We have a one-year warranty for the export of the machine. If there is a problem during the warranty period, we provide free accessories and video guidance for customers to disassemble and assemble. If there is a local agent, the agent will be arranged to go to the scene to guide and solve the problem.

Different models, the number of donated knives is also different, generally 4-10 sets of gifts.
