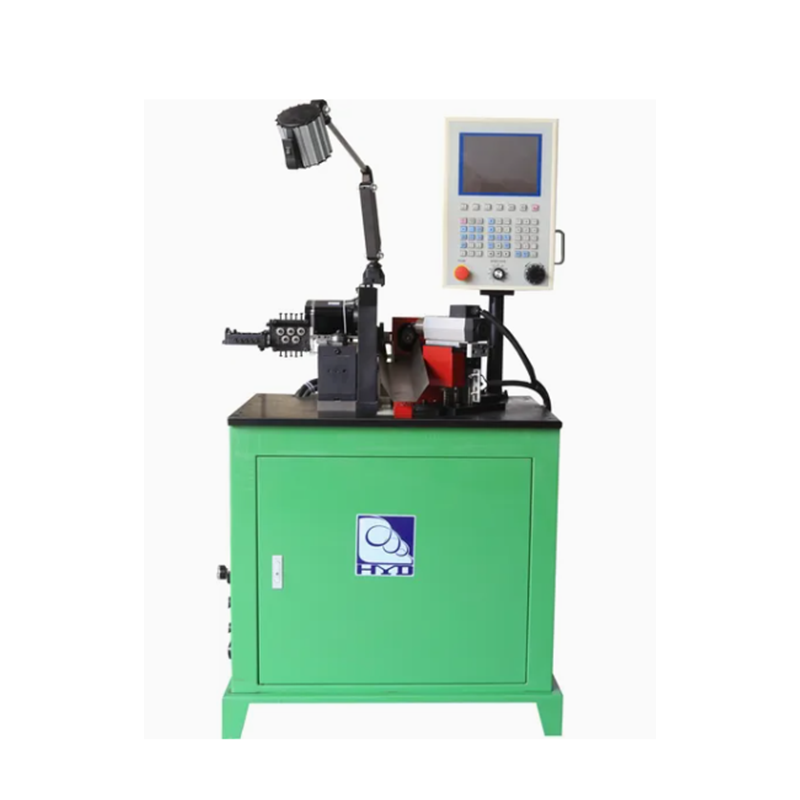

screw bushing machine

Name screw bushing machine
brand HYD
shaft 6
Wire diameter M2-M10
Applicable material copper, stainless steel, etc

In the subject of mechanics, the screw sleeve is an essential fastener.It is an accessory that is put on a bolt or screw to improve the threaded connection’s durability and tightness.It can also increase manufacturing efficiency and streamline the assembling process

Model Features:
1. The screw sleeve machine is divided into two kinds: tail and tailless. The tail screw sleeve machine comes with automatic center function, saving the time of manual center. This model can reach the maximum yield speed of 60 per minute, and the slot is stable, is currently the highest price table in the industry.
2. Tailless screw sleeve machine is our company’s latest research and development of new models, set punching hook, sleeve, tail cutting as one of the equipment, processed products without burrs, easy to install.
3. High speed motor is used for grooving, with fast speed and precise grooving depth.

Application:
Screw sleeve is a common standard parts, widely used in space shuttle, automobile, ship, mechanical equipment, electronics, medical equipment, high-speed rail and other fields.

Number of Axis 6
Wire Diameter M4-M10
Max feeding speed 141m/min
Max Wire Feed Length Unlimted
X-axis motor output 0.4KW
Y-axis motor output 1.0KW
Z-axis motor output 0.4KW
B-axis motor output 1.0KW
A-axis motor output 1.0KW
C-axis motor output 0.4KW
Voltage 3-380VAC50Hz
Machine size 1000*700*1650mm
Machine Weight 500KG



Reviews

There are no reviews yet.

Be the first to review “screw bushing machine”

Your email address will not be published. Required fields are marked *

Unable to find spring machine that meet your needs, please let us know, we support processing customization

Frequently Asked Questions

Yes, our spring machine and bending machine, tempering furnace have CE certificate.

The standard voltage of our machine is 380V, and transformers can be equipped according to different voltages in each country.

Our company has 4 R&D personnel, which can be customized according to your needs.

Different countries have different trading methods, generally FOB and CIF, according to customer requirements to choose.

Our company has 3 full-time after-sales service personnel, professional answer customer feedback questions. We have a one-year warranty for the export of the machine. If there is a problem during the warranty period, we provide free accessories and video guidance for customers to disassemble and assemble. If there is a local agent, the agent will be arranged to go to the scene to guide and solve the problem.

Different models, the number of donated knives is also different, generally 4-10 sets of gifts.
