The Ultimate Guide to Wire Bending Machines

What is a bending machine?

A wire bending machine is a specialized tool for bending metal wire into precise shapes and forms for a variety of industrial applications. In industries such as automotive, aerospace, construction and electronics, bending machines are essential for the manufacture of parts such as springs, hooks, frames and stiffeners. Wire bending machines allow spring manufacturers to save time, reduce labor costs, and enable manufacturers to efficiently produce high-quality, uniform wire spring parts. In this section, we will explore the evolution from primitive manual bending machines to complex CNC and 3D bending machines

Types of Wire Benders: Manual vs. CNC vs. 3D Wire Bending Machines

Overview of Manual, CNC, and 3D Wire Bending Machines

Wire bending machines have evolved significantly over time. Initially, manual wire bending was the norm, requiring skilled operators to bend wire into shapes by hand or using basic tools. While still useful for small-scale or highly customized projects, manual bending is limited in precision and efficiency.

Today, automated CNC (Computer Numerical Control) and 3D wire bending machines have transformed the industry. CNC machines automate the wire bending process, allowing for precise, repeatable bends with minimal human intervention. Meanwhile, 3D wire bending machines push the boundaries further by adding multi-directional capabilities, enabling complex shapes and designs that were previously difficult or impossible to achieve. Understanding the differences among these types is crucial for selecting the right machine based on production needs and complexity.

Manual Wire Benders

Manual wire benders are simple tools or machines operated by hand. They are affordable and ideal for small production runs or specialized, non-repetitive tasks. However, they lack the precision and speed of CNC and 3D machines.

CNC Wire Bending Machines

CNC wire benders use programmed commands to bend wire automatically, offering speed, accuracy, and the ability to handle large production volumes with consistent results. This type is particularly suited for industries that require precise and repeatable designs.

3D Wire Bending Machines

Unlike standard CNC machines, 3D wire benders allow for multi-axis bending, creating intricate, three-dimensional shapes. These machines are favored in industries where complex or customized parts are required, such as medical devices, aerospace, and creative product design.

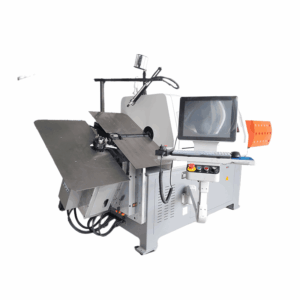

3d bending machine

Key features of wire bending machine

Accuracy and tolerance levels

When choosing a folding machine, accuracy is the most important thing. Machines like CNC and 3D wire bending machines offer high tolerance levels, ensuring that parts meet exact specifications.

Automation and ease of use

Modern wire bending machines include automation features that make them user-friendly and increase production speed. Automatic feeding, feeding and bending minimizes operator involvement and greatly improves work efficiency

Flexibility and customization options

In order to adapt to different engineering requirements, the flexibility of wire bending is essential. It offers adjustable bending angles, handles a range of wire diameters, and includes software that allows for custom programming, enabling users to create unique shapes and designs. Machines with multiple customization options are ideal for manufacturers with different production needs.

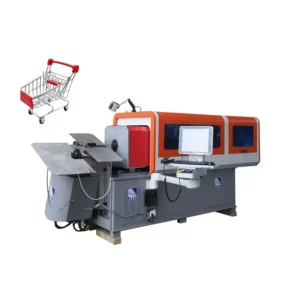

Understand CNC wire bending machine

What is a CNC bending machine?

CNC wire bending machine is an automatic tool for precision wire bending by computer programming. CNC or computer numerical control technology enables machines to precisely bend wire along multiple axes according to specific programming instructions. By feeding the wire design into the software of the machine, high quality spring products are produced. It can also handle a variety of materials, from soft metals to harder alloys.

Advantages of CNC wire bending machine:

Accuracy: Strict tolerances can be achieved, resulting in high quality, uniform parts
Efficiency: Automation speeds up production
Versatility: CNC wire bending machines can be programmed to produce a variety of designs and bending types
Reduce waste: Precise bending minimizes material waste

CNC wire bender applications:

Automobiles: Manufacture complex parts such as exhaust racks, springs, and brackets.
Electronic: Curved wire for electrical contacts and connectors.
Structure: Molding wire used to reinforce structures and frames.

Choose the right bending machine: CNC bending machine vs. 3D wire bender

When to use a CNC bending machine

CNC folding machines are ideal when precision and mass production are essential. They excel in applications that require consistent, repeatable bending, such as automotive manufacturing, electronics, and construction. CNC wire bending machines can efficiently produce simple or complex two-dimensional shapes, making them suitable for work with high tolerances and non-negotiable consistency.

For manufacturers who need to meet strict production schedules and produce large numbers of identical parts, CNC wire bending machines offer the best balance between speed and precision. Due to their reliability and ability to minimize material waste, they are also more cost-effective during long production runs.

When to choose a 3D wire bender

When the project involves complex, multi-directional bending requiring 3D forming, 3D wire bending machines are preferred. These machines are particularly beneficial in industries such as product design, medical devices, and custom manufacturing, where creative or complex wire forms are required.

3D folding machines are ideal for manufacturers wishing to produce custom designs or parts with unique spatial orientation. Their ability to bend wires on multiple axes without having to manually reposition them saves time and opens up new design possibilities.
