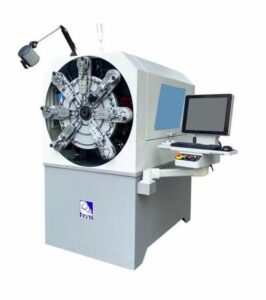

The wire forming machine is an essential automation tool known for its precision in bending wire components. However, maintaining optimal performance requires adherence to correct operational procedures and regular equipment maintenance. Failing to do so can lead to bending inaccuracies, which may compromise the quality of the final products.
To ensure smooth operation and prevent bending errors, it is crucial to identify potential issues and make precise adjustments. Below is a comprehensive guide on troubleshooting and correcting bending errors in wire forming machines.
Table of Contents
ToggleCommon Causes of Bending Errors
Bending errors can occur due to various reasons, including:
- Tooling Wear or Damage: Worn-out or deformed tools can cause misalignment.
- Inconsistent Wire Quality: Variations in wire material, thickness, or tensile strength may lead to inaccuracies.
- Hydraulic System Imbalance: Uneven hydraulic pressure can result in asymmetrical bends.
- Improper Machine Settings: Incorrect operational modes or adjustments can affect the bending precision.
By systematically inspecting these areas, you can diagnose and resolve bending issues effectively.
Step-by-Step Guide to Adjusting Bending Errors
Step 1: Inspect the Tooling for Wear or Damage
The first step in troubleshooting bending errors is to check the machine’s tooling.
- Examine the bending tools for any visible signs of wear, deformation, or damage.
- Replace compromised tools immediately with high-quality alternatives that meet the required specifications.
- Regular tool maintenance can help prevent recurring bending issues.
Tip: Using worn-out tools can lead to inconsistent bends, so routine inspection is essential.
Step 2: Verify Wire Quality and Standards
If the tooling is in good condition, the next step is to assess the wire being used.
- Check whether the wire meets necessary specifications, including diameter, tensile strength, and material composition.
- Ensure the wire is clean and free from surface defects, as impurities can cause bending inconsistencies.
- Perform trial runs with different batches of wire to confirm their suitability before full production.
Tip: Using substandard wire can affect the forming process, leading to inaccurate bends. Always source wire from reputable suppliers.
Step 3: Assess Hydraulic System Functionality
If the tooling and wire meet specifications but bending errors persist, inspect the machine’s hydraulic system.
- Verify the hydraulic balance mechanism is functioning correctly.
- Check for pressure distribution imbalances between the left and right cylinders, which may cause uneven bends.
- Look for leaks, pressure fluctuations, or inconsistent oil flow in the hydraulic system.
Tip: Regularly check and maintain the hydraulic system to prevent performance inconsistencies.
Step 4: Adjust the Operating Mode for Precision
Making precise adjustments is crucial for correcting bending errors. Follow these steps:
-
Switch to “Inching Adjustment” Mode: This mode allows for fine-tuned control during the adjustment process.
- Ensure there are no obstructions, and the slider rests firmly on the mechanical stop.
-
Fine-Tune the Pressure Gauge:
- Compress the head of the dial indicator in the wire forming machine by 3-4 mm.
- Gradually activate the foot pedal to increase system pressure.
- Monitor the dial indicator readings closely for variations.
-
Verify and Stop at the Correct Setting:
- When the dial indicator reaches the specified pressure value, stop the operation.
- If needed, make additional fine adjustments to achieve precise bending accuracy.
Tip: Always document adjustments for future reference and machine optimization.
Preventive Maintenance for Long-Term Accuracy
To ensure consistent performance and reduce bending errors, implement the following maintenance practices:
- Regular Tooling Inspections: Check for wear and replace tools before they fail.
- Hydraulic System Checks: Monitor fluid levels, pressure consistency, and potential leaks.
- Wire Quality Control: Always verify material standards before use.
- Machine Calibration: Periodically adjust machine settings to maintain precision.
By following these steps, you can enhance the efficiency of your wire forming machine and maintain high-quality bending accuracy. Regular maintenance and timely adjustments not only improve product quality but also extend the lifespan of the equipment.
