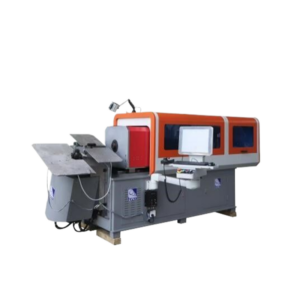

The Metal Wire Bending Machine is a cutting-edge, precision-engineered solution designed to meet the demands of modern metalworking industries. Whether you’re in manufacturing, construction, or crafting, this machine delivers unmatched accuracy, efficiency, and versatility in bending metal wires into complex shapes and angles. With innovative features such as a movable wire feeding system, independent outer twisting head adjustment, and a laterally adjustable bending head, this machine ensures superior performance and flexibility for a wide range of applications.
Machine parameter
| Number of Axis | 7 axes |
| Welding power | varying voltage 40KVA |
| Max welding frame | 500*500mm |
| Min welding frame | 100*100mm |
| Wire Diameter of welding | φ3.0–6.0mm (2.0-3.0mm is able to do forming) |
| Number of wire feed roller | 3 pairs |
| Max production speed with welding | 11 pcs/min |
| Wire feed motor | Dorna Motor 1.5KW |
| External torsion motor | Dorna Motor 1.5KW |
| Torsion rising-lowering motor | Dorna Motor 0.4KW |
| Cutter motor | Dorna Motor 1.0KW |
| Welding crossrange wire feed motor | Dorna Motor 1.0KW |
| Welding endwise wire feed motor | Dorna Motor 0.75KW |
| Welding vertical wire feed motor | Dorna Motor 0.4KW |
| control system | 1 set |
| Machine voltage | AC 380V |
| Machine Dimension | 2200*1100*1880mm |
| Machine Weight | 1000KG |
Key Features:
Movable Wire Feeding System:
The machine’s wire feeding box is designed to be movable, allowing it to be positioned closer to the bending head. This minimizes the distance between the feeding system and the bending head, resulting in more stable product formation.
For wider or longer products, the movable design provides additional forming space, enhancing both flexibility and precision.
Independent Outer Twisting Head Adjustment:
The outer twisting head can be independently raised or lowered while the inner twisting head remains stationary.
During directional changes, the outer twisting head adjusts without the need for the wire to detach from the inner twisting head, ensuring smoother transitions and more stable bending results.
Laterally Adjustable Bending Head:
The bending head can move left and right, providing greater flexibility for processing complex or intricate designs.
This feature allows for precise adjustments, making it easier to handle challenging designs that require multiple bends or curves.
High Precision Bending:
Equipped with advanced CNC (Computer Numerical Control) technology, the Metal Wire Bending Machine guarantees precise bending with minimal error margins. It adeptly handles intricate designs and complex shapes, making it suitable for both simple and sophisticated projects.
Versatility:

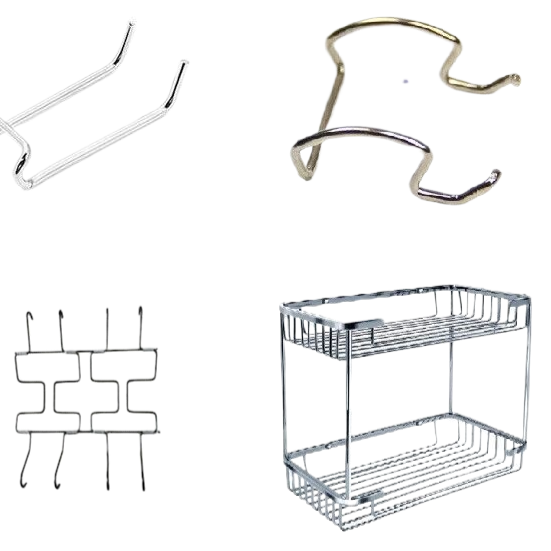

The machine is capable of bending a wide range of metal wires, including steel, aluminum, and copper. It supports various wire diameters and can be adjusted to accommodate different thicknesses and lengths, making it ideal for diverse applications.
Durability and Reliability:
Constructed from high-quality materials, the Metal Wire Bending Machine is built to endure the rigors of heavy-duty use. Its robust design ensures long-lasting performance, even in the most demanding industrial environments.
Customizable Options:
The Metal Wire Bending Machine can be tailored to meet specific production requirements. Optional accessories, such as additional bending heads, wire straighteners, and coil feeders, can be integrated to enhance functionality and performance.
