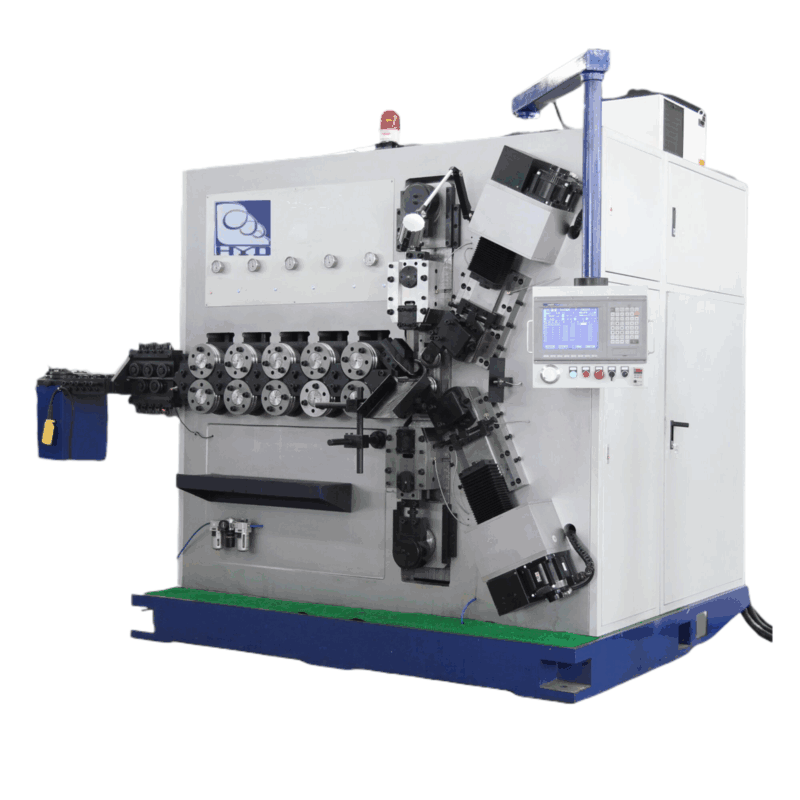

Industrial cnc spring coiling machine

The Industrial cnc spring coiling machine is a state-of-the-art, 6-axis automated system tailored for high-precision spring manufacturing. With its robust design and advanced features, it is well-suited for industries requiring complex spring geometries and high-volume production, such as automotive, aerospace, electronics, and industrial manufacturing.

Machine parameter

Key Features & Specifications:

1. 6-Axis CNC Control
   • Enables precise control over spring coiling, allowing for the creation of complex geometries and intricate designs with high accuracy.
2. High-Power Feeding Motor (25KW)
   • Delivers stable and consistent wire feeding, ensuring smooth operation and reducing the risk of wire slippage or deformation during high-speed production.
3. Under Cutter Motor (7.0KW)
   • Provides clean, sharp cuts with minimal material waste, enhancing the overall efficiency and quality of the finished springs.
4. Dual Cam Motors (4.4KW × 2)
   • Enhances motion control for intricate spring designs, ensuring precise synchronization and smooth operation during coiling.
5. Pitch Motor (2.9KW)
   • Allows for accurate pitch adjustments, making it versatile for producing a wide range of spring types, including compression, extension, and torsion springs.
6. Fixed Cutter Servo System
   • Ensures precise cutting and shaping, contributing to the consistent quality of the springs produced.
7. Industrial-Grade Design
   • Operates at 380V and weighs 6900KG, making it a durable and reliable solution for heavy-duty industrial environments.

Applications:

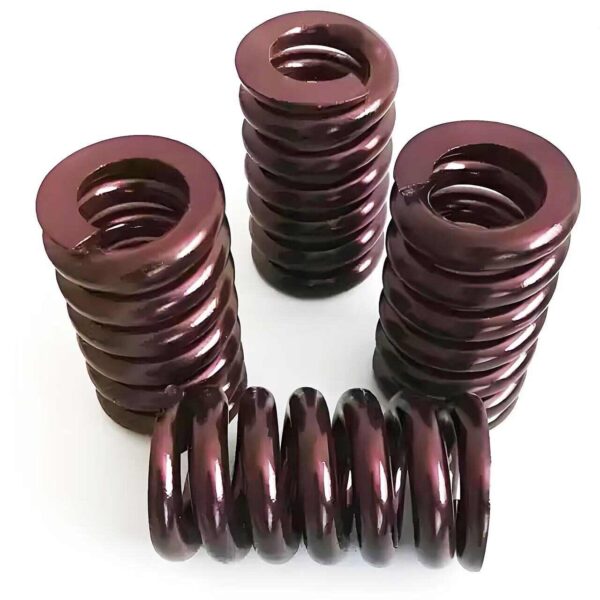

• Automotive: Manufacturing of suspension springs, valve springs, and other critical components.
• Aerospace: Production of high-precision springs for aircraft systems and components.
• Electronics: Creation of small, intricate springs for electronic devices and connectors.
• Industrial: High-volume production of springs for machinery, tools, and equipment.

Advantages:

• High Efficiency: Optimized for fast production speeds without compromising precision.
• Superior Accuracy: Ensures consistent quality and adherence to tight tolerances.
• Durability: Built to withstand the demands of continuous industrial use.
• Versatility: Capable of producing a wide variety of spring types and designs.

The HYD-680 CNC Spring Coiling Machine is an excellent investment for manufacturers seeking to enhance their production capabilities, improve product quality, and meet the demands of modern industrial applications.
