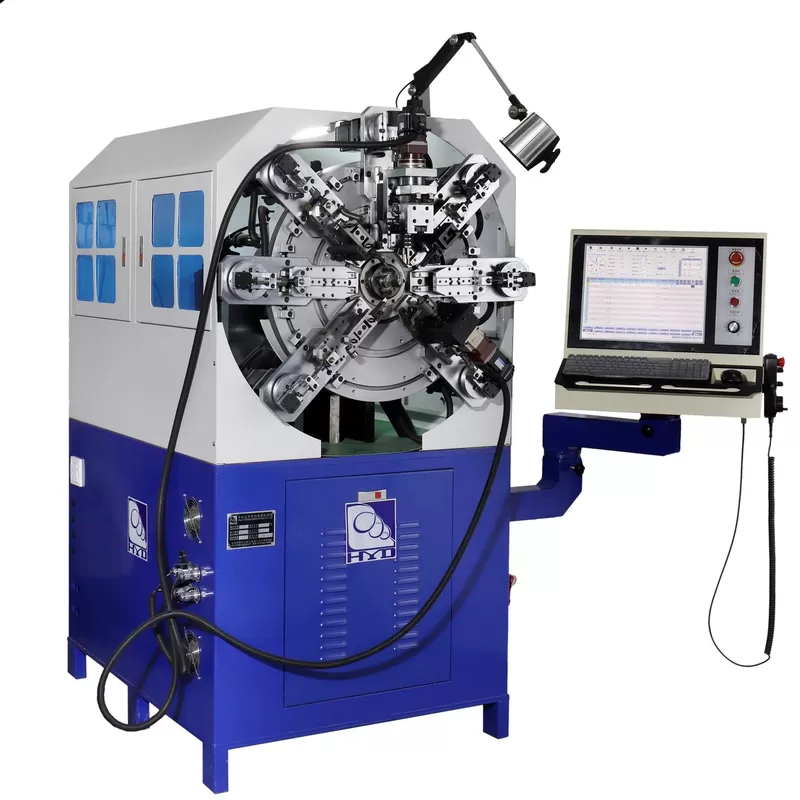

high speed cnc spring machine

Name high speed cnc spring machine
brand HYD
shaft 13
Wire diameter 4.0-10mm
Max Wire Feed Speed 70m/min
Applications: Automotive, military and aerospace, electronics and instrumentation

high speed cnc spring machine parameter:

Model HYD-100T-13A
Wire Diameter 4.0-10mm
Number of Axes 13 Axes
Wiire Feed Roller 5Pairs
Max Wire Feed Speed 70m/min
Max Wire Feed Speed ±0.2(Length)
Servo Motor Power 68.5KW
Reducer 11 Pcs
Decoiler 2000KG
Voltage 380V
Machine size 5600*2600*2900mm
Machine Weight 14000KG



high speed cnc spring machine feature:

  • Innovative connecting rod no rocker arm construction: This design greatly improves the product molding space, especially in the processing of special-shaped springs, showing more convenient and efficient characteristics to meet diversified production needs.
  • Japan high precision servo motor drive: the use of top technology, the line accuracy is accurate to ±0.2MM, to ensure the high precision and consistency of spring manufacturing, improve product quality.
  • Integrated servo shear function: For long product processing, the servo shear can be directly operated, effectively reduce the impact of cutting on the mandrel, reduce machine vibration, and extend the service life of the tool and machine.
  • Rotary motor and wire box independent design: through the separation design, reduce the load of the wire box, not only speed up the speed of the wire, but also increase the Angle of the wire, for the spring forming to provide a broader space Angle choice.
  • Excellent high-speed production capacity: With its advanced control system and efficient drive components, it significantly improves the production speed, meets the large-scale and efficient production requirements, and brings higher production capacity for enterprises

Reviews

There are no reviews yet.

Be the first to review “high speed cnc spring machine”

Your email address will not be published. Required fields are marked *

Unable to find spring machine that meet your needs, please let us know, we support processing customization

Frequently Asked Questions

Yes, our spring machine and bending machine, tempering furnace have CE certificate.

The standard voltage of our machine is 380V, and transformers can be equipped according to different voltages in each country.

Our company has 4 R&D personnel, which can be customized according to your needs.

Different countries have different trading methods, generally FOB and CIF, according to customer requirements to choose.

Our company has 3 full-time after-sales service personnel, professional answer customer feedback questions. We have a one-year warranty for the export of the machine. If there is a problem during the warranty period, we provide free accessories and video guidance for customers to disassemble and assemble. If there is a local agent, the agent will be arranged to go to the scene to guide and solve the problem.

Different models, the number of donated knives is also different, generally 4-10 sets of gifts.
