extension spring machine

Name extension spring machine
brand HYD
shaft 13axis
Wire diameter 2.0-10mm
Applicable material Iron, copper, stainless steel, etc
Applications Automotive,Aerospace , Medical Devices ,Electronics & Machinery

Our Extension Spring Machine is engineered to deliver unparalleled precision and efficiency in the manufacturing of high-quality extension springs. This state-of-the-art machine is specifically designed for automated CNC spring coiling, ensuring that every spring produced maintains consistent tension, precise hook formations, and uniform coil dimensions.

extension spring machine parameter

Model HYD-60T-13A HYD-80T-13A HYD-100T-13A
Wire Diameter 2.0-6.0mm 3.0-8.0mm 4.0-10mm
Number of Axes 13 Axes 13 Axes 13 Axes
Wiire Feed Roller 4 Pairs 4 Pairs 5Pairs
Max Wire Feed Speed 80m/min 80m/min 70m/min
Max Wire Feed Speed ±0.2(Length) ±0.2(Length) ±0.2(Length)
Servo Motor Power 50.7KW 68.5KW 68.5KW
Reducer 11 Pcs 11 Pcs 11 Pcs
Decoiler 1000KG 1500KG 2000KG
Voltage 380V 380V 380V
Machine size 4000*2100*2300mm 5500*2200*2400mm 5600*2600*2900mm
Machine Weight 4500KG 8000KG 14000KG

Key Features:



  • CNC-Controlled Accuracy: Benefit from advanced CNC programming that guarantees consistent spring quality, allowing for intricate designs and specifications.
  • High-Speed Production: Enhance your manufacturing efficiency with rapid coiling and forming capabilities, enabling you to meet production demands without compromising quality.
  • Versatile Wire Compatibility: Our machine supports a wide range of wire materials, including stainless steel, carbon steel, and various alloy wires, making it adaptable to different production requirements.
  • Customizable Hook Forming: Easily adjust the machine settings to create different hook styles and specifications, providing flexibility for diverse applications.
  • User-Friendly Interface: The intuitive control panel simplifies operation, reducing setup time and increasing overall productivity, allowing operators to focus on quality and efficiency.

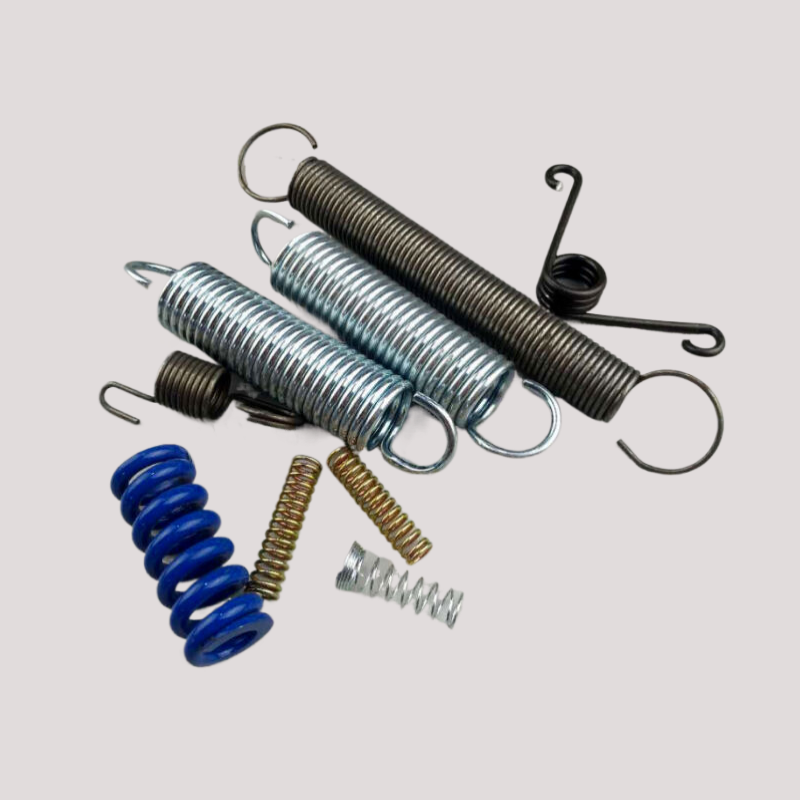

Ideal for Industries:

✔ Automotive – Suspension springs, brake springs
✔ Aerospace – Precision extension springs
✔ Medical Devices – High-accuracy tension springs
✔ Electronics & Machinery – Small, high-tension springs

Reviews

There are no reviews yet.

Be the first to review “extension spring machine”

Your email address will not be published. Required fields are marked *

Unable to find spring machine that meet your needs, please let us know, we support processing customization

Frequently Asked Questions

Yes, our spring machine and bending machine, tempering furnace have CE certificate.

The standard voltage of our machine is 380V, and transformers can be equipped according to different voltages in each country.

Our company has 4 R&D personnel, which can be customized according to your needs.

Different countries have different trading methods, generally FOB and CIF, according to customer requirements to choose.

Our company has 3 full-time after-sales service personnel, professional answer customer feedback questions. We have a one-year warranty for the export of the machine. If there is a problem during the warranty period, we provide free accessories and video guidance for customers to disassemble and assemble. If there is a local agent, the agent will be arranged to go to the scene to guide and solve the problem.

Different models, the number of donated knives is also different, generally 4-10 sets of gifts.
