Compression springs stand as one of the most widely utilized mechanical components, playing a vital role in delivering a resisting force when compressed or squeezed. From everyday items like ballpoint pens to heavy-duty industrial machinery, these springs excel at absorbing shocks, storing energy, and counteracting external forces. This article delves into the core aspects of compression springs—including their definition, types, design principles, size considerations, specialized variants, manufacturing equipment, and selection criteria—to provide a comprehensive guide for anyone working with or choosing these essential components.
What Is a Compression Spring?

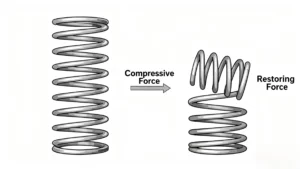

At its core, a compression spring is a mechanical device engineered to store energy when subjected to compression. It exerts a resisting force against any object that compresses or squeezes it, and most are crafted in a coiled shape, allowing them to return to their original length once the compressive force is removed—provided the spring’s elastic limit is not exceeded. The primary function of a compression spring is to resist compression, making it a staple across countless applications, from household gadgets to large-scale industrial systems.
The operation of compression springs is rooted in Hooke’s Law, which states that the force a spring exerts is directly proportional to the amount of compression (or displacement) it undergoes. The formula to calculate this force is:
F = k × Δx
Here, F represents the force exerted by the spring (measured in Newtons), k is the spring constant (an indicator of the spring’s stiffness), and Δx is the compression or displacement from the spring’s natural length.
Compression springs are manufactured using a range of materials, each selected based on the application’s needs, environmental conditions, and performance requirements. Common materials include:
- Carbon Steel: A go-to choice for general-purpose springs due to its accessibility and basic durability.
- Stainless Steel: Valued for its corrosion resistance, making it ideal for springs used in harsh environments (such as marine or medical settings).
- Alloy Steel: Offers enhanced strength and fatigue resistance, suitable for high-stress applications.
- Music Wire: A high-carbon steel variant known for its exceptional ability to revert to its original shape after repeated compression.
- Titanium and Inconel: Reserved for specialized use cases, such as high-temperature or ultra-high-strength applications (e.g., aerospace components).
Small Diameter Compression Springs vs. Large Diameter Compression Springs
Compression springs are often categorized by their diameter, with two primary types standing out: small diameter compression springs and large diameter compression springs. The choice between them hinges on the specific demands of the application, including space limitations and load-bearing needs.
Small Diameter Compression Springs
Small diameter compression springs are defined by their compact design, making them perfect for scenarios where space is limited or precision is critical. Typically, these springs have a diameter of less than 5mm, allowing them to fit into tight spaces while still delivering reliable performance.
Common applications for small diameter compression springs include:
- Electronics: They are integral to devices like mobile phones (e.g., in button mechanisms), computer keyboards (providing key rebound), and other compact electronic gadgets, where they deliver compressive force in minuscule spaces.
- Medical Devices: Tiny compression springs are essential in tools like syringes (controlling plunger movement), blood pressure cuffs (regulating pressure), and small pumps, where precision and miniaturization are non-negotiable.
- Automotive Components: They are used in compact parts such as locking mechanisms and actuators, where their small size complements the vehicle’s tight internal spaces.
The advantages of small diameter compression springs include their ability to fit into confined areas, high design precision (suited for sensitive applications), and a strong force-to-size ratio—despite their lightweight construction. They excel at storing significant energy in limited space without increasing the overall size of the product.
Large Diameter Compression Springs
In contrast, large diameter compression springs are designed to handle heavy loads and are typically used in applications where size is not a limiting factor. Their diameters can range from 5mm to several meters, depending on the system’s requirements. These springs are built for durability and strength, making them a staple in heavy-duty settings.
Key applications for large diameter compression springs include:
- Heavy Machinery: They are used in industrial equipment like shock absorbers (reducing impact), mechanical presses (supporting load exertion), and large manufacturing machines (stabilizing operations).
- Automotive Suspension Systems: These springs absorb shocks from rough terrain and support the vehicle’s weight, ensuring a stable and smooth ride.
- Construction Equipment: In cranes, bulldozers, and other heavy machinery, large diameter compression springs absorb the impact of heavy loads, protecting the equipment and improving safety.
The main advantages of large diameter compression springs are their high load-bearing capacity (ability to withstand significant forces), durability under tough conditions, and versatility across heavy-duty applications. They are the go-to choice when large forces need to be absorbed or applied.
Compression Spring Design
Designing a compression spring requires careful consideration of multiple factors to ensure it functions correctly, meets performance goals, and integrates seamlessly with the intended system. The success of a compression spring design hinges on balancing load capacity, stiffness, deflection, material selection, and tolerance.
Key Factors in Compression Spring Design
- Load Capacity: The spring must be able to support the intended load without breaking, permanent deformation, or loss of functionality. Load capacity is influenced by the spring’s material, wire diameter, and number of coils—thicker wires and stronger materials, for example, increase load-bearing ability.
- Spring Rate (Stiffness): This refers to the force required to compress the spring by a specific distance. A higher spring rate means the spring resists compression more (ideal for heavy loads), while a lower rate allows for greater compression (suited for lighter applications). The spring rate directly shapes how the spring behaves under load.
- Deflection: Deflection is the amount the spring compresses when force is applied. It is tied to the spring’s size (e.g., number of coils) and material—more coils, for instance, allow for greater deflection but may reduce load capacity. Understanding required deflection helps determine the optimal number of coils and wire thickness.
- Material Selection: As noted earlier, material choice impacts the spring’s performance in critical ways:
- Corrosion Resistance: For springs in corrosive environments (e.g., marine or medical devices), stainless steel is preferred.
- Fatigue Resistance: Materials like chrome-silicon or high-carbon steel are chosen for applications involving repeated compression cycles, as they resist wear over time.
- Temperature Tolerance: Inconel and titanium are used for springs exposed to extreme temperatures (e.g., aerospace or industrial heating systems).
- Tolerance: Tolerance refers to the allowable deviation from ideal measurements (e.g., wire diameter, coil count). Accounting for manufacturing tolerances is essential to ensure the spring fits precisely within the mechanical system and functions as intended.
High Compression Springs
High compression springs are a specialized variant of compression springs, engineered to endure far greater compressive forces than standard springs. They are designed to maintain structural integrity and functionality even under extreme pressure—conditions where standard springs would fail due to excessive load.
To achieve this high performance, high compression springs are typically made from stronger alloys (e.g., high-strength alloy steel or titanium) and feature larger wire thicknesses and diameters, which enhance their ability to handle heavy loads.
Benefits of High Compression Springs
- Increased Strength: Their robust material composition allows them to compress under heavy loads without permanent deformation.
- Enhanced Durability: They are less prone to breaking or fatigue under extreme conditions, making them reliable for long-term use in demanding settings.
- Consistent High Performance: Even under continuous or high-impact use, high compression springs maintain stable performance, ensuring the system operates smoothly.
Applications of High Compression Springs
- Heavy-Duty Industrial Machinery: They are used in presses, crushers, and other equipment that applies or resists massive forces, where their strength prevents equipment damage.
- Aerospace: In aircraft landing gear systems, high compression springs absorb the impact of landing and support the aircraft’s weight, requiring both strength and reliability.
- Automotive: High-performance vehicles (e.g., racing cars) use high compression springs in their suspension systems to absorb substantial forces from rough tracks and maintain vehicle stability.
Compression Spring Sizes

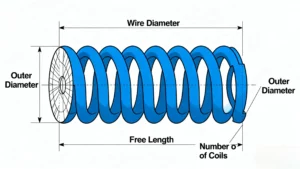

The size of a compression spring directly influences its performance—including how it behaves under load, the amount of deflection it can handle, and its lifespan before fatigue sets in. Compression springs are available in standard sizes for general use, but specialized applications often require custom-designed springs to meet unique needs.
Standard vs. Custom Sizes
- Standard Sizes: These are pre-determined, mass-produced springs that cover most general applications (e.g., basic household tools or standard industrial parts). They are readily available and cost-effective, making them a practical choice for non-specialized use cases.
- Custom Sizes: For applications with unique requirements (e.g., specific space constraints, unusual load demands, or harsh environmental conditions), custom-sized springs are necessary. Customization can involve adjusting the spring’s diameter, length, number of coils, wire thickness, or material to align with the application’s exact needs.
How Size Impacts Performance
- Diameter: Larger diameter springs can absorb more load, making them suitable for heavy-duty applications (e.g., construction machinery). Smaller diameter springs, by contrast, are better for lightweight, compact applications (e.g., electronics).
- Wire Gauge: Thicker wires increase load capacity, while thinner wires are used for less demanding tasks (e.g., small household gadgets).
- Number of Coils: More coils allow for greater deflection but reduce overall load capacity. Fewer coils, on the other hand, boost load capacity but limit deflection.
Choosing the right size is critical: it ensures the spring can return to its original shape after compression, resists fatigue over time, and integrates properly with the system.
Custom Compression Springs in Specialized Industries
Certain industries rely heavily on custom compression springs due to their unique operational demands:
- Medical Devices: Custom springs are used in heart pumps, surgical instruments, and diagnostic tools, where precision, miniaturization, and biocompatibility are critical.
- Aerospace: Aircraft systems require springs that are lightweight yet capable of handling extreme stresses (e.g., temperature fluctuations, high loads). Custom designs ensure these springs meet strict aerospace standards.
- Automotive: For specialized vehicle components (e.g., high-performance suspension systems or engine parts), custom springs are tailored to fit unique size constraints and deliver specific performance outcomes.
Compression Spring Machine (Spring Machine)
Manufacturing compression springs requires precision, which is achieved through specialized equipment known as compression spring machines—often referred to simply as spring machines. These machines form wire into precise coils, ensuring consistency and high quality across both small and large production batches.
Overview of Spring Machines
Spring machines are designed to automate the coil-forming process, ensuring each spring meets exact specifications (e.g., wire diameter, coil count, length). They range from simple manual models to advanced automated systems, each suited to different production needs.
Types of Spring Machines Used in Manufacturing
- CNC Spring Machines: These automated machines are the backbone of modern spring production, offering high accuracy and flexibility. They can be programmed to adjust key parameters (wire diameter, number of coils, coil pitch) during production, making them suitable for both small diameter and large diameter compression springs. CNC spring machines excel at producing both standard and custom springs, as their programmability allows for quick adjustments between designs.
- Mechanical Spring Coilers: These simpler, mechanical machines are ideal for high-volume production of standard-sized compression springs. While they lack the flexibility of CNC machines, they are cost-effective and efficient for repetitive, uniform production runs.
- Hydraulic Spring Machines: These machines use hydraulic force to form springs that require high pressure to shape—typically large, heavy-duty compression springs (e.g., those used in construction equipment). Hydraulic spring machines deliver the power needed to work with thick, strong wires.
The Role of CNC in Modern Spring Production
CNC technology has revolutionized spring manufacturing by enabling unmatched precision and efficiency. CNC spring machines can produce springs to exact specifications, reducing errors and ensuring consistency across batches. They also streamline production, allowing manufacturers to switch between different spring designs quickly—making them essential for producing custom compression springs and meeting the diverse needs of industries like aerospace, medical, and automotive.
Key Factors in Compression Spring Selection
Choosing the right compression spring for an application requires evaluating several critical factors to ensure optimal performance and longevity.
- Load Requirements: First, determine the force the spring must withstand. This includes distinguishing between static loads (constant force during operation) and dynamic loads (fluctuating force). Load requirements directly influence material choice and spring design (e.g., wire thickness, diameter).
- Space Constraints: If the application has limited space (e.g., a small electronic device), small diameter compression springs are the right choice. For applications with no size restrictions (e.g., heavy machinery), large diameter compression springs may be more suitable.
- Material and Environmental Factors: Select a material that can withstand the application’s environment—stainless steel for corrosive settings, Inconel for high temperatures, and alloy steel for high-stress conditions.
- Durability and Fatigue Resistance: Springs subjected to repeated compression (e.g., suspension systems) need materials and designs that resist fatigue. High-carbon steel or alloy steel are preferred for such applications, as they can handle thousands of cycles without failure.
Conclusion
Compression springs are indispensable across industries, providing essential functions like energy storage, shock absorption, and load resistance. Whether you’re working with small diameter compression springs in delicate electronics, large diameter compression springs in heavy machinery, or specialized high compression springs in aerospace systems, understanding their definition, design principles, sizes, and manufacturing processes is key to selecting or designing the right spring.
By considering factors like load capacity, space constraints, material selection, and the capabilities of compression spring machines, engineers and designers can ensure their chosen springs deliver reliable performance, durability, and seamless integration with the intended system.
