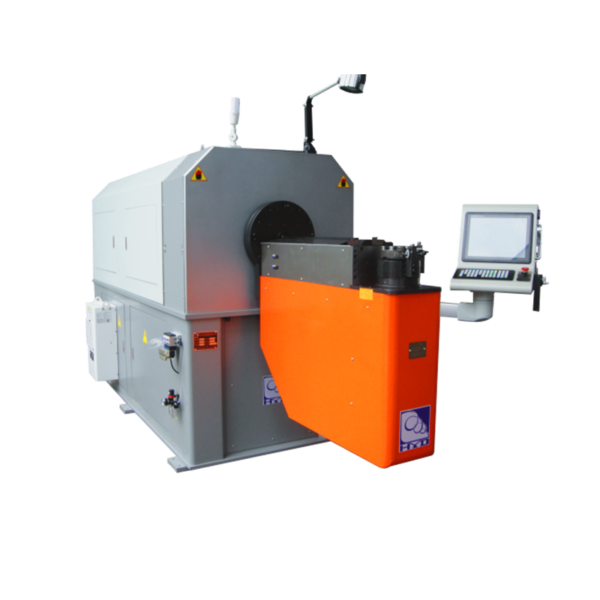

Computer Rotary head type 3D wire bending machine

Name Computer Rotary head type 3D wire bending machine
brand HYD
shaft 6
Wire diameter 4.0-10mm
Applicable material Aluminum, iron, stainless steel

Computer Rotary head type 3D wire bending machine uses cutting-edge technology and high-end configuration to provide excellent performance and operating experience, and is a high efficiency and high precision wire bending equipment.

The following are the main features of this bending machine:

Bus control system:
The bending machine adopts advanced bus control system, which is known for its high stability and can ensure the machine to run for a long time without trouble.
The operation interface design is simple and intuitive, users can quickly learn and skillfully operate, regardless of the operator’s experience level, can easily get started.

Imported absolute servo motor:
The imported absolute servo motor is used to improve the accuracy and response speed of the whole machine.
The origin of each shaft can be set arbitrarily according to needs, without relying on any external induction switch, making the configuration of the device more flexible and accurate.

Six-axis full servo motor control:
The machine is equipped with a full servo motor control system with six axes, and every action can be executed precisely, significantly improving the accuracy and repeatability of the operation.
This full servo control also enhances the stability of the machine, even at high speed or complex operations, the machine can remain efficient and stable.
Structural design optimization:
The compact structure design improves the rigidity of the machine, thus enhancing the durability and reliability of the equipment.
It is more flexible and can work efficiently in a compact space, suitable for a variety of working environments.

Application scenario

This 3d bending machine is suitable for various industrial applications that require high precision and stability, such as automated assembly, precision machining, robotics, etc. Its powerful features and ease of use make it ideal for improving work efficiency and machining quality. Making it the preferred device in a variety of demanding work scenarios.



Model ZTJ-6A-100
Wire Diameter 4.0-10mm
Number of Axis 6
Max Wire Feed Speed >80m/Min
Wire Feed Length Unlimited
Servo Motor Power 22KW
Motor Brand Sanyo/Yaskawa
Feeding Roller Pairs 3
Voltage 380V
Machine size 3950*900*1600mm
Machine Weight 2600KG

Reviews

There are no reviews yet.

Be the first to review “Computer Rotary head type 3D wire bending machine”

Your email address will not be published. Required fields are marked *

Unable to find spring machine that meet your needs, please let us know, we support processing customization

Frequently Asked Questions

Yes, our spring machine and bending machine, tempering furnace have CE certificate.

The standard voltage of our machine is 380V, and transformers can be equipped according to different voltages in each country.

Our company has 4 R&D personnel, which can be customized according to your needs.

Different countries have different trading methods, generally FOB and CIF, according to customer requirements to choose.

Our company has 3 full-time after-sales service personnel, professional answer customer feedback questions. We have a one-year warranty for the export of the machine. If there is a problem during the warranty period, we provide free accessories and video guidance for customers to disassemble and assemble. If there is a local agent, the agent will be arranged to go to the scene to guide and solve the problem.

Different models, the number of donated knives is also different, generally 4-10 sets of gifts.
