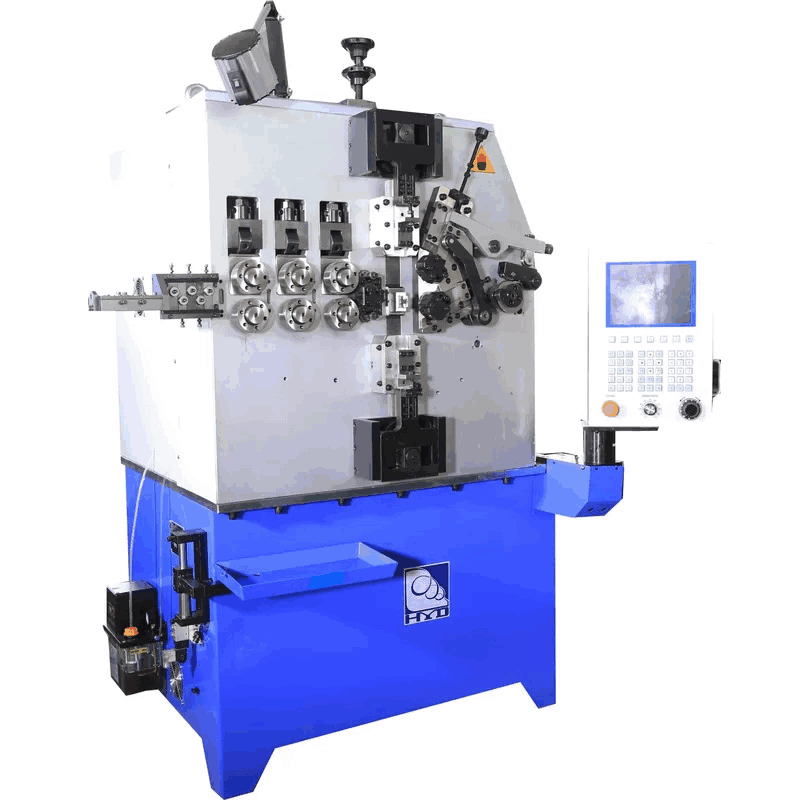

Our coil spring machines are industry-leading solutions designed to meet the high standards required for spring manufacturing across multiple industries. The machine incorporates the most advanced numerical control technology, thus setting a new benchmark in ensuring product quality consistency, increasing production efficiency and achieving ultra-high precision. Whether in automotive manufacturing, electronics or a wide range of industrial applications, our coil spring machines are perfectly adapted to meet their demanding needs.
coil spring machine parameter
| Model | HYD-340 |
| Diameter | 1.0-4.0mm |
| Maximum wire length | Unlimted |
| The direction of the reel | Right and Left Hand |
| Maximum reel speed | 120 Meter/min |
| Maximum wire directive | 0.01mm |
| Outer diameter setting range | ≤65.00mm |
| Yield per minute | ≤400pcs |
| Wire feeding servo motor | 5.5kw |
| Outside diameter of the servo | 5.5kw |
| Pitch servo | 1.0kw |
| Machine size | 1200*850*1650mm |
| Machine weight | 1200kg |
coil spring machine feature：

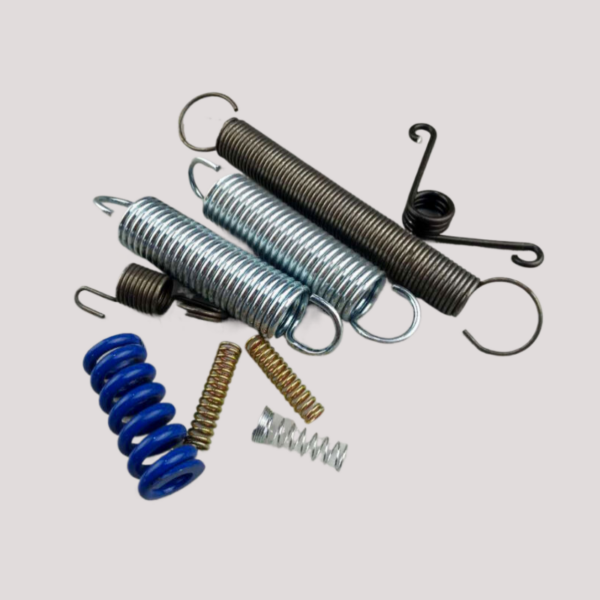

Versatile design: Supports complex spring shapes, including compression and torsion springs.
Different languages can be customized: intuitive touch control for easy operation and programming.
High efficiency: Minimize production time and improve work efficiency.
The controller comes with a highly sensitive probe, which can be used to detect the length and control the running of the line during the production process.
Whether you need a custom configuration or standard features, our spring coiling machines offer superior performance for all your spring manufacturing needs.
