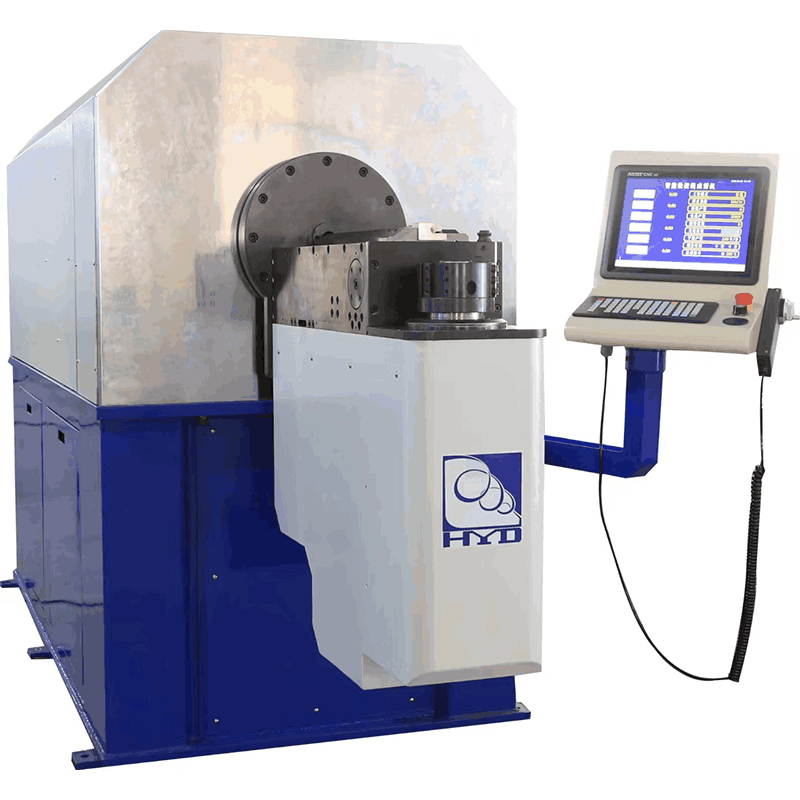

This model is a rotary 3D cnc tube bending machine, the main features are:
1. High precision: The use of advanced numerical control technology and servo motor drive, can achieve high precision bending molding, error range is usually within tens of microns.
2. High efficiency: high degree of automation, fast processing speed, can significantly improve production efficiency, reduce labor costs.
3. Diversified processing: Support from two-dimensional to three-dimensional complex and diversified bending processing, to meet the diverse needs of different industries and products for large wire product molding.
4. Easy to operate: the computer numerical control system interface is very friendly, simple and convenient operation, reducing the professional and technical requirements for the operator.
5. Stable and reliable: the equipment has compact structure, stable and reliable operation, and can work continuously for a long time without failure
Machine parameter：
| 技术参数/Technical specification | ||
| 型号 Model | ZTJ-6A-140 | ZTJ-6A-160 |
| 加工线径范围 Wire Size | ɸ8.0-ɸ14.0mm TS≦500N | ɸ8.0-ɸ16.0mm TS≦500N |
| 伺服轴数 Servo Motors | 6 axes | 6 axes |
| 控制系统 Control System | Dedicated CNC Computer | Dedicated CNC Computer |
| 伺服电机品牌 Moter Brand | Sanyo/Yaskawa | Sanyo/Yaskawa |
| 最大送线指令 Max.Wire Feed | 10000.0mm | 10000.0mm |
| 最小送线指令 Min.Wire Feed | 0.01mm | 0.01mm |
| 最大送线速度 Max.Wire Speed | >80m/min | >80m/min |
| 最大送线长度 Wire Feed Length | unlimited | unlimited |
| 输入电压规格Power | 3phase，380V | 3phase，380V |
| 气压Air Pressure | 5-6KG/CM² | 5-6KG/CM² |
| 探针 Probe | 2 | 2 |
| 机器尺寸 Machine Size | L3100*W1000*H1650MM | L3100*W1000*H1650MM |
HYD company Services:
1. Free training is provided in HYD production base.Pictures and video of the machine operation will be sent for confirmation before shipment.
2. The professional and patient consulting service will help you find the suitable solution.
3. Quick and safe shipment as per your requirement including the booking ,container loading, and shipping documents.
4. HYD provide technical support by email and phone,technicians will be available at your side if necessary.
5. Spare parts will be freely supplied during the guarantee period(one year), original cost after this period.
