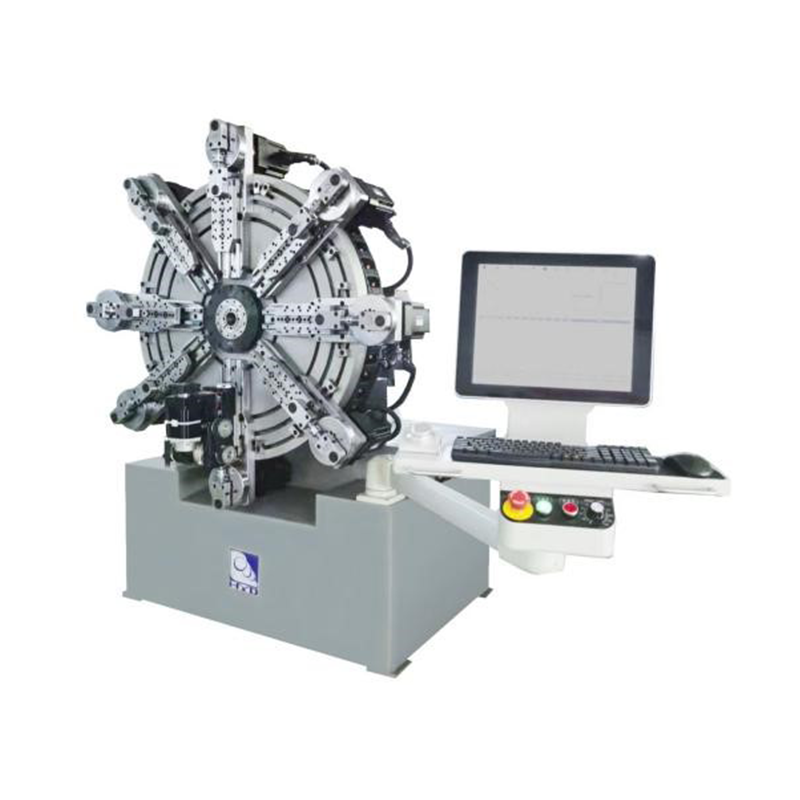

10-axis cnc spring making machine parameters
Model | HYD-40T-10A |
Number of Axes | 10 Axes |
Wire Diameter | 1.0-4.0mm |
Wiire Feed Roller | 4 Pairs |
Max Wire Feed Speed | 100m/min |
Max Wire Feed Speed | ±0.15(Length) |
Servo Motor Power | 21.5KW |
Reducer | 10 Pcs |
Decoiler | 300KG |
Voltage | 380V |
Machine size | 1100*1400*2000mm |
Machine Weight | 2500KG |
cnc spring making machine feature:
- 1.Single-axis servo motor independent control, you can adjust its position at will, suitable for processing some products with more corners. Save time and improve production efficiency.
- 2. Taiwan silver roller guide rail, large contact surface, good wear resistance, can maintain the machine accuracy for a long time.
- 3. Crimping can be installed in the rotating core, quite the function of the rotating line, the necessary artifact for processing space Angle products, fast and stable.
- 4. Crimping can also be designed into internal and external rotation of two axes, can fold a number of internal circle folding Angle of the arc, the product shape is the first choice.
