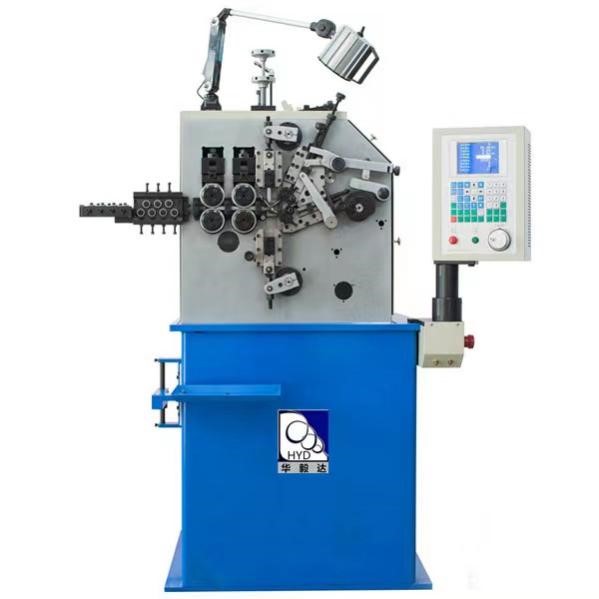

cnc spring coiling machine

Name Cam Spring machine
brand HYD
Spring Coiling Mode) Compression Spring
Wire diameter 0.15-0.8mm
Applicable material Iron, copper, stainless steel, etc

Model features:

  • This model is the most economical model of the spring coiling machine, the production speed can reach 500 / minute, easy to debug, and novices can quickly get started.
  • Equipped with automatic wire feed rack, the speed of wire rotation can be freely adjusted to match the production speed of the machine. When the material is entangled or used up, the wire holder will automatically stop and sound a warning alarm.
  • Products with high length requirements can be selected with built-in or external length tester, which can be automatically corrected and sorted by computer to ensure the consistency of product length.
Model HYD-208
Wire Diameter 0.15-0.8mm
Max Production speed 560pcs/min
Max Outside Diameter 25mm
X-axis motor output(wire feed) 1.0KW
Y-axis motor output(Cam) 1.0KW
Voltage 220V
Machine size 850*650*1500mm
Machine Weight 400KG

Reviews

There are no reviews yet.

Be the first to review “cnc spring coiling machine”

Your email address will not be published. Required fields are marked *

Unable to find spring machine that meet your needs, please let us know, we support processing customization

Frequently Asked Questions

Yes, our spring machine and bending machine, tempering furnace have CE certificate.

The standard voltage of our machine is 380V, and transformers can be equipped according to different voltages in each country.

Our company has 4 R&D personnel, which can be customized according to your needs.

Different countries have different trading methods, generally FOB and CIF, according to customer requirements to choose.

Our company has 3 full-time after-sales service personnel, professional answer customer feedback questions. We have a one-year warranty for the export of the machine. If there is a problem during the warranty period, we provide free accessories and video guidance for customers to disassemble and assemble. If there is a local agent, the agent will be arranged to go to the scene to guide and solve the problem.

Different models, the number of donated knives is also different, generally 4-10 sets of gifts.
