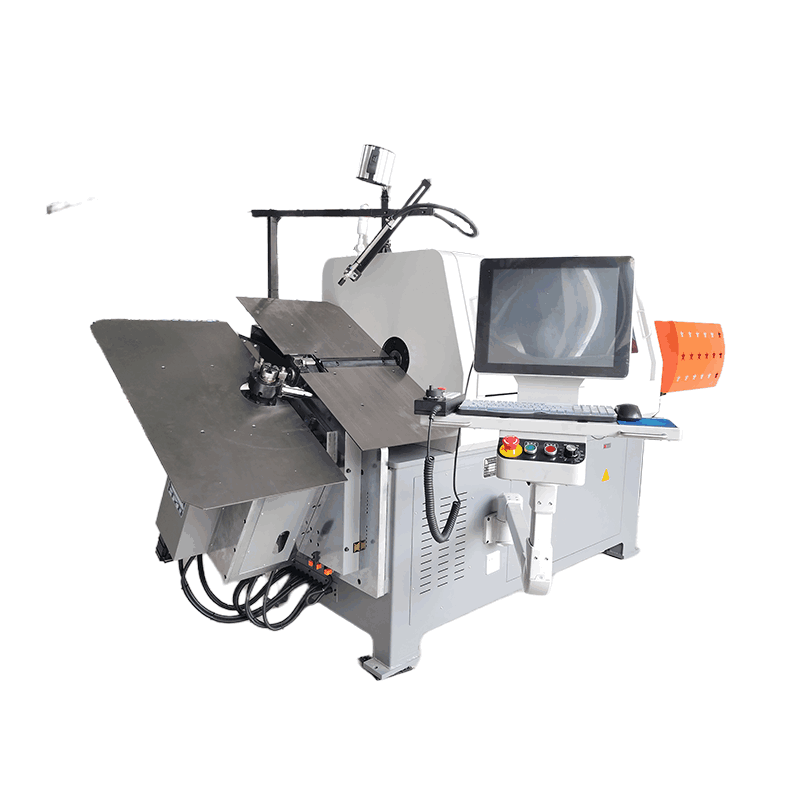

CNC Rod Bending Machine

The CNC Rod Bending Machine is a high-performance solution designed to deliver precise, efficient, and flexible bending for a variety of wire and rod materials. Featuring a mobile cable box, adjustable bending head, and advanced CNC control system, this machine is built to meet the demands of industries like automotive, construction, and metal fabrication. With its innovative design, the CNC Rod Bending Machine ensures high productivity, stability, and adaptability for even the most complex bending tasks.

Key Features:

• Mobile Cable Box for Enhanced Stability: The CNC Rod Bending Machine comes with a programmable mobile cable box, which can be moved back and forth to reduce the distance between the cable box and the bend. This feature ensures smoother bending, higher production efficiency, and improved product stability, offering greater flexibility during the bending process.

• Wire Straightness and Product Integrity: After bending and cutting, the product can be moved using the mobile cable box, preventing wire deformation during withdrawal. This functionality is especially crucial for wires with diameters below ɸ4.00mm, ensuring that the wire remains straight and the product stays stable throughout the process.

• Offset Bending Head for Precise Results: The adjustable head allows for precise bending of materials with a radius below R30 without requiring multiple bends. This innovative feature enhances the machine’s versatility, improving performance by at least 30% compared to machines with fewer than seven axes.

• High-Precision CNC Control: Equipped with a sophisticated CNC control system, this machine guarantees accuracy and repeatability in every bending operation. Operators can easily program and monitor the bending process, ensuring consistent and high-quality results.

• Robust and Adaptable: The CNC Rod Bending Machine is designed to handle a wide range of rod diameters and materials, including steel, stainless steel, aluminum, and copper, making it highly adaptable to various industry requirements.

Optional Functions:

• Wire Peeling Function: The machine can be configured with either a double-head or single-head chamfering system for wire peeling, adding an extra layer of flexibility to your bending operations.

• Automatic Welding Manipulator: An optional automatic welding manipulator can be added to perform welding tasks, streamlining the production process and reducing manual labor.

Core Components:

• Wire Box: The mobile wire box optimizes bending stability and precision.

• Computer System: Easy-to-use CNC control panel for programming, monitoring, and adjusting bending parameters.

• Straightening Mechanism and Wire Rack: Ensures smooth wire feeding and alignment, maintaining consistent tension for accurate bends.

• Drive, Cutter, Swivel Arm, and Folding Machine: High-quality mechanical components that contribute to the machine’s durability and performance.

Applications:

• Automotive Industry: Ideal for manufacturing custom parts such as exhaust systems, roll cages, and chassis components.

• Construction: Used for bending reinforcement bars, structural rods, and other building materials.

• Furniture and Metal Fabrication: Perfect for creating custom furniture, railings, and metal components.

• Aerospace and Specialized Industries: Designed to meet the stringent precision requirements of the aerospace, energy, and manufacturing sectors.

Model Comparison:
