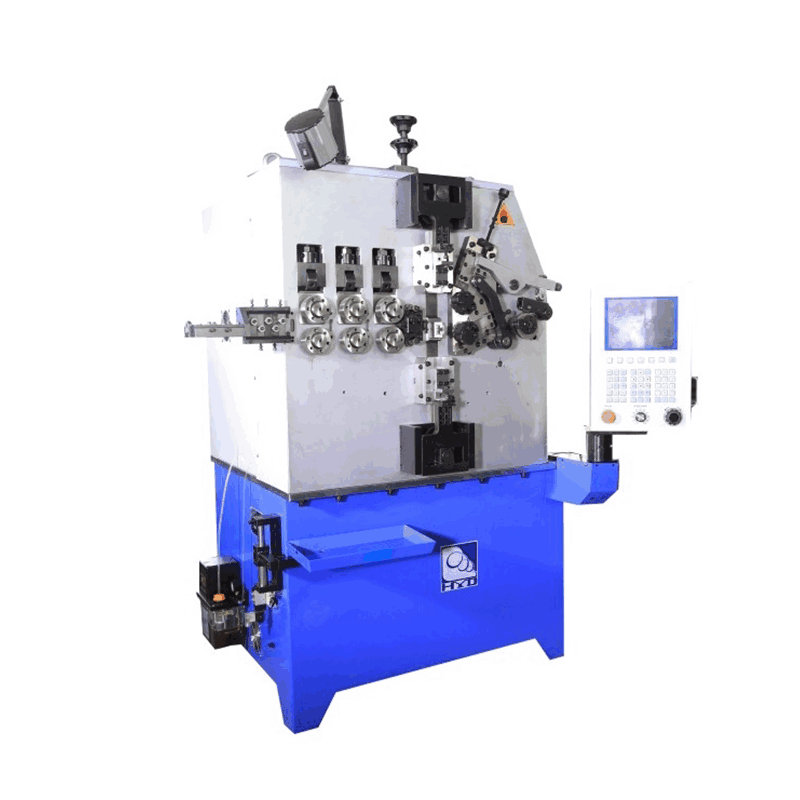

The Camless Spring Machine is engineered for high precision and flexibility, enabling the production of complex and custom-shaped springs with ease. Utilizing servo motor control for each axis, this machine offers superior performance and efficiency compared to traditional cam-driven systems.
Key Features:
-
Camless Design with Servo Motor Control: Each axis is independently controlled by a servo motor, ensuring precise and smooth operation.
-
Quick Setup for Special-Shaped Springs: The adjustable tooling placement angle reduces setup time, making it ideal for custom and special-shaped spring production.
-
Durable Taiwan Roller Guide Rails: Equipped with 8 claws and Taiwan roller guide rails for excellent wear resistance and easy cleaning.
-
Servo Scissors for Direct Cutting: Automatically cuts springs after forming, protecting tools and extending machine life.
-
Enhanced Wire Feeding System: The wire rotary axis, separate from the feed box, ensures better accuracy, speed, and reduced load on the wire feed.
-
User-Friendly Operation: Simple interface and control for efficient production of complex, varied spring types.
Applications:
-
Automotive: Springs for suspension, brakes, and more.
-
Aerospace: Precision components for aircraft and spacecraft.
-
Electronics: Small, high-accuracy springs for electronic devices.
-
Industrial: Springs used in various machinery and industrial applications.
| Specification | Details |
|---|---|
| Model | HYD-80T-13A |
| Axis Count | 13 axes |
| Wire Size Range | Low carbon steel: 5-10mm |
| High-carbon steel: 3-8mm | |
| Lead Rail Distance | 210mm |
| Wire Feeding Count | 4 pairs |
| Max Feeding Speed | 80m/min |
| Maximum Error | ±0.1mm (length) |
| Control System + Decoiler | 1 set |
| Servo Motor Power | 68.5KW |
| Reducer | 11 pcs |
| Minimum Length of Angle | 4 times wire diameter |
| Machine Size | 580022002400mm |
| Machine Weight | 8500kg |
