automatic spring making machine

Name automatic spring making machine
brand HYD
shaft 5 axis
Wire diameter 0.2-2.3mm
Applicable material Iron, copper, stainless steel, etc
Applications industrial, automotive, and electronics applications.

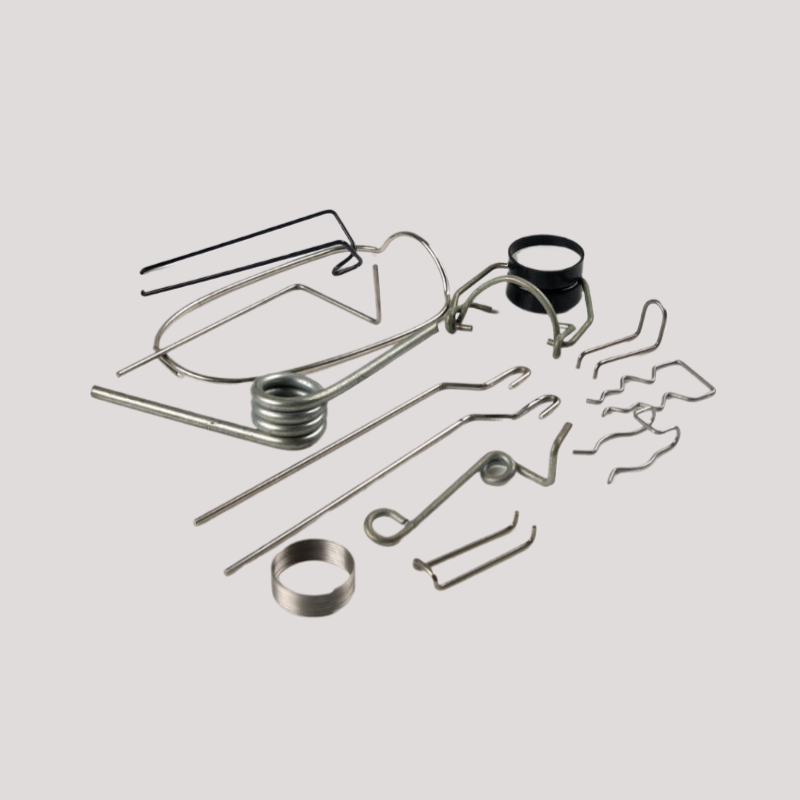

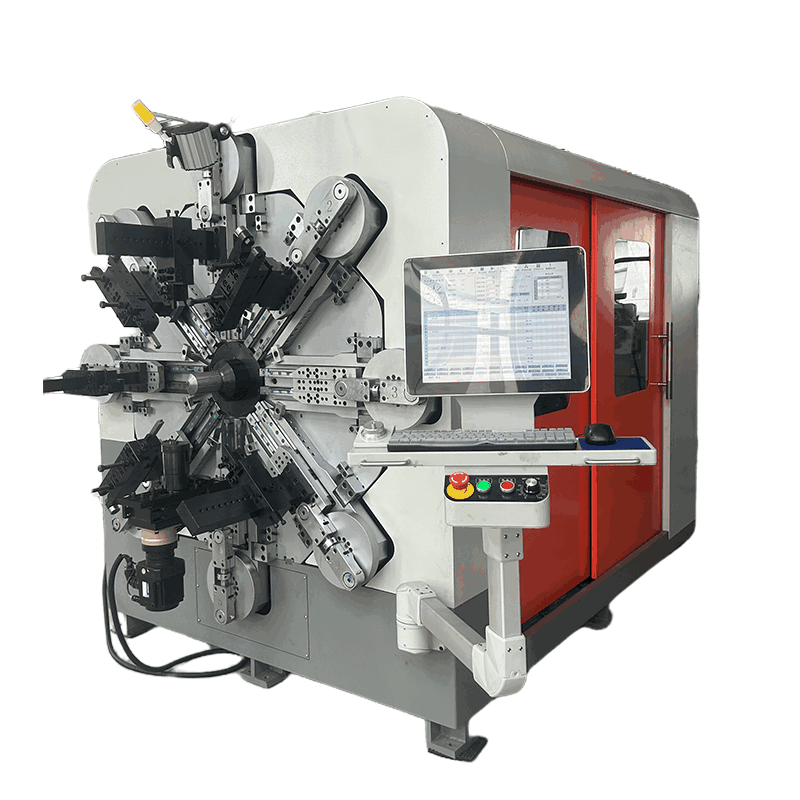

The 20T-5A automatic spring making machine is a high-performance CNC spring coiling machine designed for precise and efficient production of compression, torsion, and extension springs. With 5-axis CNC control, powerful servo motors, and a wire size range of Φ0.2-2.3mm, this machine ensures high-speed, accurate, and stable spring manufacturing.

automatic spring making machine parameter

Model 20T-5A
Wire size Φ0.2-2.3mm
Total power 9.5KW
Servo motor axes 5
Wire feed wheels 3 groups
Wire feed 2.7KW
Wire rotary 2.7KW
Cam 2.7KW
Spinner 0.4KW
Quil 1KW
Machine size L1700xW1500xL1700MM
Weight 1500kg
Power 3 phase, 380V/50HZ

Key Features:

Wide Wire Size Compatibility: Supports Φ0.2-2.3mm wire for various spring applications.

5-Axis CNC System: Ensures precise wire feeding, coiling, cutting, and forming.

High-Power Efficiency: 9.5KW total power with servo motors for smooth operation.

Multi-Wheel Wire Feeding: 3 groups of wire feed wheels for enhanced stability and accuracy.Robust & Compact Design: Heavy-duty 1,500kg build with a space-saving 1700x1500x1700MM footprint.

Industrial-Grade Power Supply: Runs on 3-phase, 380V/50HZ for maximum efficiency.

Reviews

There are no reviews yet.

Be the first to review “automatic spring making machine”

Your email address will not be published. Required fields are marked *

Unable to find spring machine that meet your needs, please let us know, we support processing customization

Frequently Asked Questions

Yes, our spring machine and bending machine, tempering furnace have CE certificate.

The standard voltage of our machine is 380V, and transformers can be equipped according to different voltages in each country.

Our company has 4 R&D personnel, which can be customized according to your needs.

Different countries have different trading methods, generally FOB and CIF, according to customer requirements to choose.

Our company has 3 full-time after-sales service personnel, professional answer customer feedback questions. We have a one-year warranty for the export of the machine. If there is a problem during the warranty period, we provide free accessories and video guidance for customers to disassemble and assemble. If there is a local agent, the agent will be arranged to go to the scene to guide and solve the problem.

Different models, the number of donated knives is also different, generally 4-10 sets of gifts.
