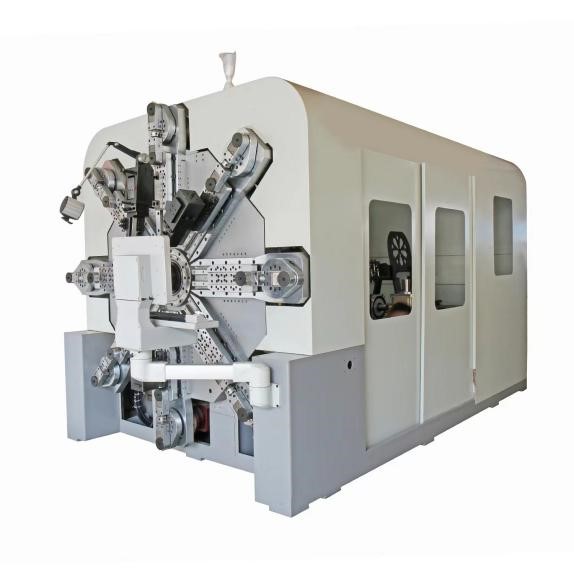

Automatic spring machine features
Linkage without arm design
The linkage without arm design allows for a larger product forming space, especially when processing some irregular products, making operation more convenient and efficient.
High-precision servo motor
Equipped with high-precision servo motors from Japan, the wire feeding precision can be controlled within +/- 0.2MM, ensuring high precision and stability during the processing process.
Servo cutting device
A servo cutting device can be selected, suitable for processing longer products, which can directly cut off the wire, reducing the impact force on the core bar and lowering the machine vibration, thus protecting the tool and machine service life.
Wire feeding box and wire rotation motor separation design
The wire feeding box and wire rotation motor separation design reduces the weight of the wire feeding box, improves wire rotation speed, and increases the wire rotation angle, providing a larger space angle for product forming.
| Model | HYD-80T-13A |
| Wire Diameter | 3.0-8.0mm |
| Number of Axes | 13 Axes |
| Wiire Feed Roller | 4 Pairs |
| Max Wire Feed Speed | 80m/min |
| Max Wire Feed Speed | ±0.2(Length) |
| Servo Motor Power | 68.5KW |
| Reducer | 11 Pcs |
| Decoiler | 1500KG |
| Voltage | 380V |
| Machine size | 5500*2200*2400mm |
| Machine Weight | 8000KG |
