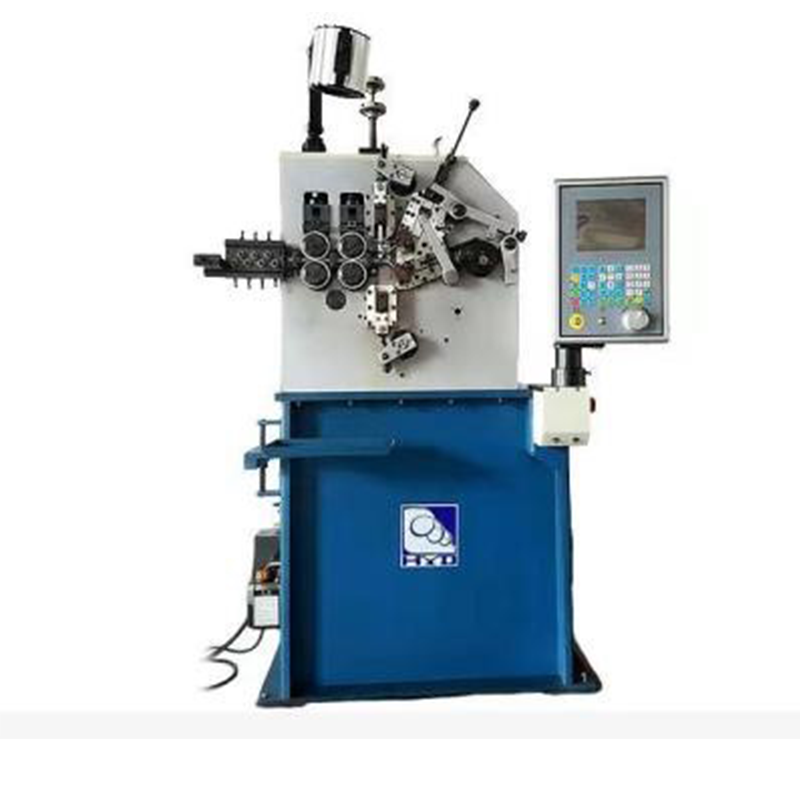

automatic spring coiling machine

Name automatic spring coiling machine
brand HYD
shaft 10
Wire diameter 0.8-2.6mm
Applications: Medical equipment, household appliances, mechanical equipment

automatic spring coiling machine parameter

Model HYD-326
Wire Diameter 0.8-2.6mm
Max Production speed 400pcs/min
Max Outside Diameter 50mm
X-axis motor output(wire feed) 2.7KW
Y-axis motor output(Cam) 4.5KW
Pitch motor 1.0KW
Voltage 380V
Machine size 850*850*1500mm
Machine Weight 900KG

Spring coiling machine features:

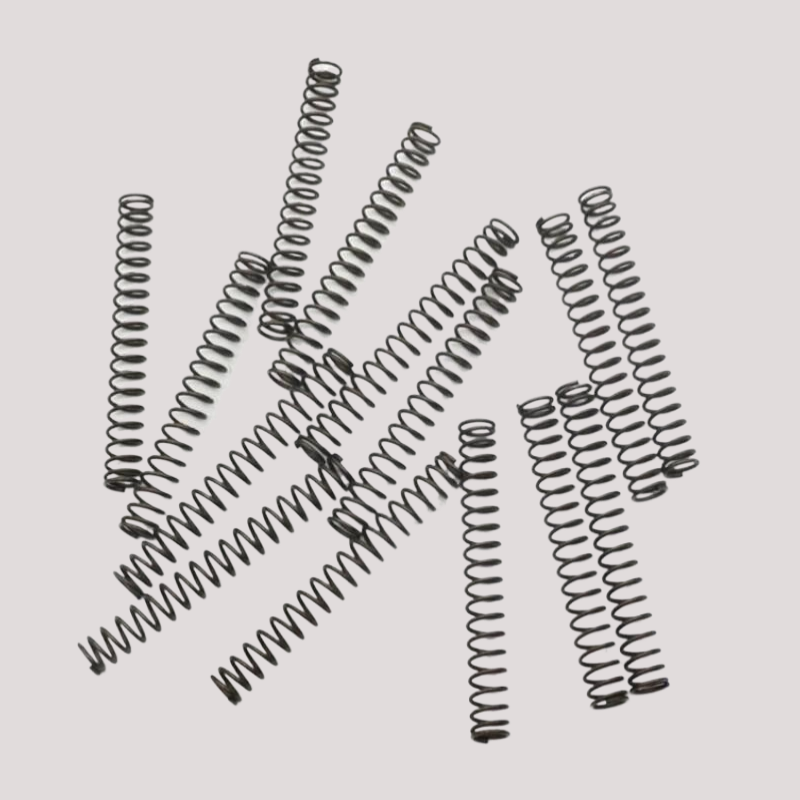

1. The wire group is increased, and the small outer diameter pressure spring is more powerful.

2. Add the pitch axis. For complex products with different pitch, you only need to input the pitch data in the computer, which will be automatically generated by the machine and completed quickly and easily. The pitch shaft can also be used to bend corners to make special-shaped products, such as processing torsion springs with many corners.

3. The controller comes with a high sensitivity probe, which can detect the length and can also be used to control the running line in the production process.

Reviews

There are no reviews yet.

Be the first to review “automatic spring coiling machine”

Your email address will not be published. Required fields are marked *

Unable to find spring machine that meet your needs, please let us know, we support processing customization

Frequently Asked Questions

Yes, our spring machine and bending machine, tempering furnace have CE certificate.

The standard voltage of our machine is 380V, and transformers can be equipped according to different voltages in each country.

Our company has 4 R&D personnel, which can be customized according to your needs.

Different countries have different trading methods, generally FOB and CIF, according to customer requirements to choose.

Our company has 3 full-time after-sales service personnel, professional answer customer feedback questions. We have a one-year warranty for the export of the machine. If there is a problem during the warranty period, we provide free accessories and video guidance for customers to disassemble and assemble. If there is a local agent, the agent will be arranged to go to the scene to guide and solve the problem.

Different models, the number of donated knives is also different, generally 4-10 sets of gifts.
