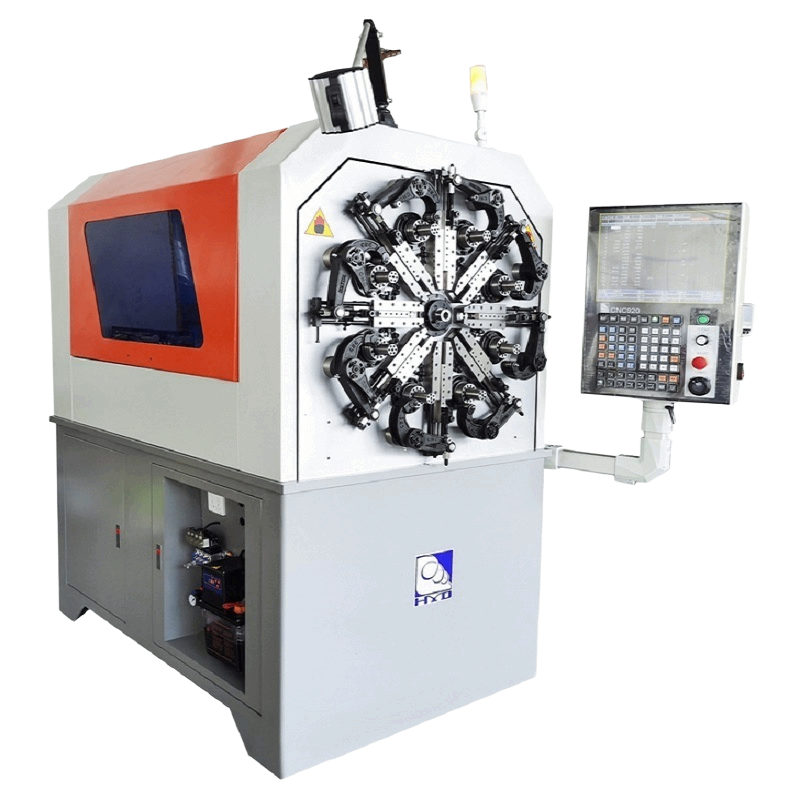

The HYD-20T-5A 5-Axis CNC Spring Machine is engineered for precision, efficiency, and flexibility in modern spring manufacturing. Designed to handle wire diameters from 0.2mm to 2.3mm, this advanced CNC spring coiling machine delivers exceptional performance for producing compression springs, tension springs, torsion springs, and custom wire forms.
Key Features & Specifications:
-
Wide Wire Diameter Range: Supports 0.2–2.3mm wire, ideal for small to medium-sized springs across various industries.
-
High-Speed Wire Feeding: Achieves a maximum feeding speed of 141 meters per minute, boosting productivity for high-volume production.
-
Powerful Multi-Axis Control:
-
X-Axis (Wire Feed): 2.7KW
-
Y-Axis (Cam Motion): 2.7KW
-
Z-Axis (Quill Control): 1.0KW
-
A-Axis (Spinner): 0.4KW
-
B-Axis (Wire Rotation): 2.7KW
All axes are servo-driven, enabling precise, synchronized movements for complex spring geometries.
-
-
Large Program Storage: Stores up to 1000 programs, supporting fast changeovers and flexible production.
-
Optimized Machine Layout:
-
Voltage: 380V (industrial standard)
-
Machine Size: 1600 × 1500 × 1900 mm
-
Weight: 1600 KG – robust structure for stable, long-term operation.
-
Application Areas:
Perfectly suited for automotive, electronic components, household appliances, medical devices, and industrial machinery, the HYD-20T-5A ensures consistent spring forming at high speed and precision.
