3 Axis CNC Spring Machine

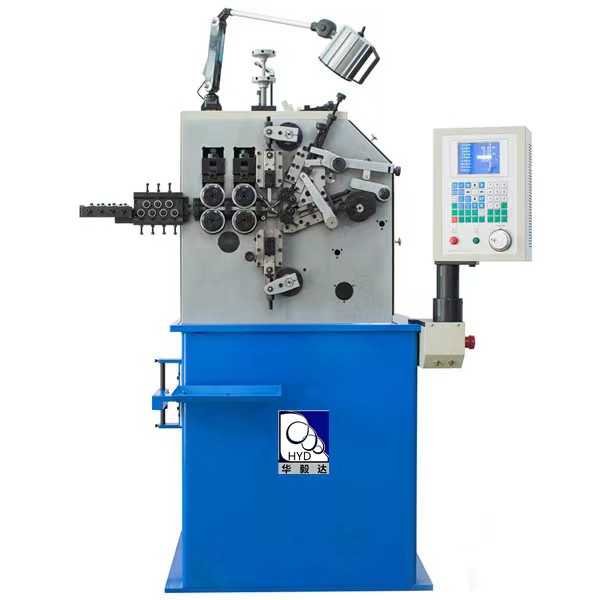

The HYD-320 3 Axis CNC Spring Machine is a high-performance solution designed for precise and efficient spring manufacturing. Ideal for forming compression, tension, and torsion springs, this machine supports wire diameters from 0.4mm to 2.0mm and delivers consistent output with a maximum wire feed speed of 1000m/min and unlimited wire feeding length.

Equipped with 3-axis servo control, the HYD-320 enables independent and accurate movement of the wire feed, cam, and pitch motors—perfect for demanding spring production environments across automotive, electronics, and industrial sectors.

Key Features:

• ✔ 3-axis CNC control for advanced motion coordination

• ✔ Wire size range: 0.4–2.0mm

• ✔ Max outside spring diameter: 45mm

• ✔ Unlimited wire feeding length for continuous production

• ✔ High wire feed speed: Up to 1000m/min

• ✔ Heavy-duty decoiler: 60KG capacity

• ✔ Servo motor specs:

  • Wire Feed Motor: 2.7KW

  • Cam Motor: 2.7KW

  • Pitch Motor: 1.0KW

• ✔ Compact footprint: 900×950×1600mm

• ✔ Machine weight: 880KG

• ✔ Power Supply: 220V 3-phase, 50/60Hz

Applications:

• Spring components for automobiles and motorcycles

• Electrical and electronic connectors

• Industrial machinery springs

• Precision wire forming for custom parts

Why Choose the HYD-320 CNC Spring Coiling Machine?
This machine combines high-speed performance, precision control, and durability, making it an ideal choice for both high-volume and custom spring production
