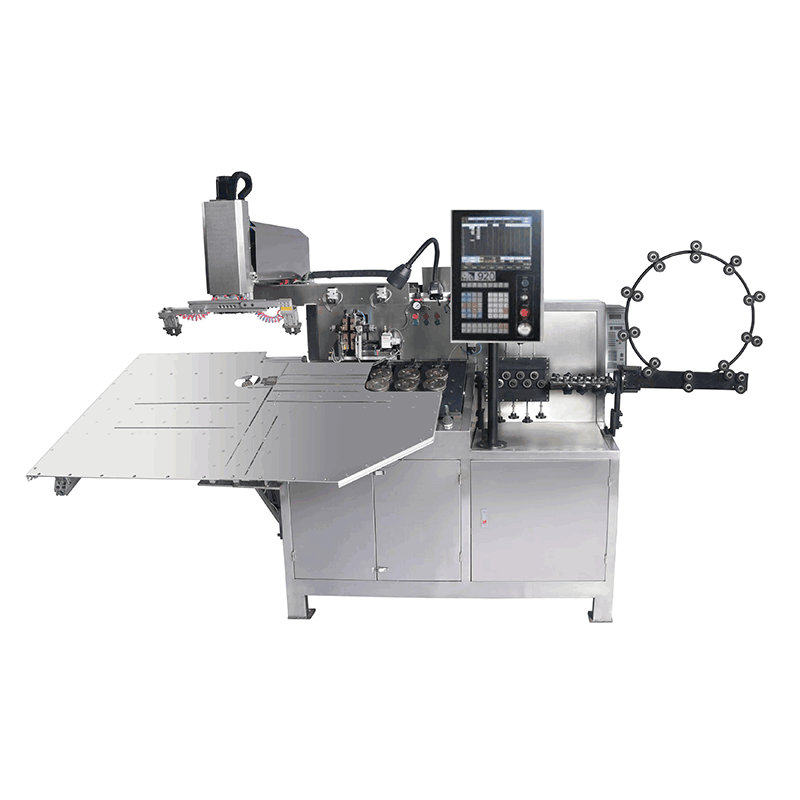

Our 2D CNC Wire Bending Machine is designed for fast, accurate, and automated wire forming, making it ideal for industries such as automotive, electronics, furniture, and construction. With advanced CNC technology, this machine delivers high-speed bending of various wire materials, ensuring consistent quality and precision.
This model is a 2D wire bending machine, the main features are:
1. High precision: The use of advanced numerical control technology and servo motor drive, can achieve high precision bending molding, error range is usually within tens of microns.
2. High efficiency: high degree of automation, fast processing speed, can significantly improve production efficiency, reduce labor costs.
3. Do long rod line molding stability is high, speed is fast, can do 600-900mm long rod molding plane wire bending processing.
4 Easy to operate: the computer numerical control system interface is very friendly, the computer boot, shutdown speed, simple and convenient operation, reducing the professional and technical requirements of the operator, the computer interface can be produced while speed regulation while changing the program.
5. Stable and reliable: the equipment has compact structure, stable and reliable operation, and can work continuously for a long time without failure.
6. This machine can be optional double head chamfer or single head chamfer, to achieve wire peeling function; Automatic welding manipulator can also be selected to achieve welding function.
Machine parameter
| Model | HYD-WR4A/5A-65 | HYD-WR4A/5A-80 | HYD-WR4A/5A-100 |
| Wire Size | ɸ2.5-ɸ6.5mm TS≦500N | ɸ2.5-ɸ8.0mm TS≦500N | ɸ3.0-ɸ10.0mm TS≦500N |
| Servo Motors | 4 or 5 axes | 4 or 5 axes | 4 or 5 axes |
| Control System | Dedicated CNC Computer | Dedicated CNC Computer | Dedicated CNC Computer |
| Moter Brand | Sanyo/Inovance/Matsushita | Sanyo/Inovance/Matsushita | Sanyo/Inovance/Matsushita |
| Max.Wire Feed | 10000.0mm | 10000.0mm | 10000.0mm |
| Min.Wire Feed | 0.01mm | 0.01mm | 0.01mm |
| Max.Wire Speed | >60m/min | >60m/min | >60m/min |
| Wire Feed Length | unlimited | unlimited | unlimited |
| Power | 3phase，380V | 3phase，380V | 3phase，380V |
| Air Pressure | 5-6KG/CM² | 5-6KG/CM² | 5-6KG/CM² |
| Probe | 2 | 2 | 2 |
| Machine Size | L2900*W1130*H1650MM | L2900*W1130*H1650MM | L2900*W1130*H1650MM |
First, the main core components are: wire box, computer, wire rack, straightening mechanism, driver, cutter and so on.
1, Folding machine: mainly line function, different angles with different folding machine;
2, Wiring box: mainly used for wire bending machine;
3, Drive: the computer program into the motor running instructions, used to control the servo motor controller, part of the servo system, mainly used in high-precision positioning system;
4, Straightening structure: used for wire straightening;
5,Decoiler : used to carry wire, while output wire under the tensile force of the main body of the wire bending machine;
6, Computer: control the drive, arrange the program of production products.
