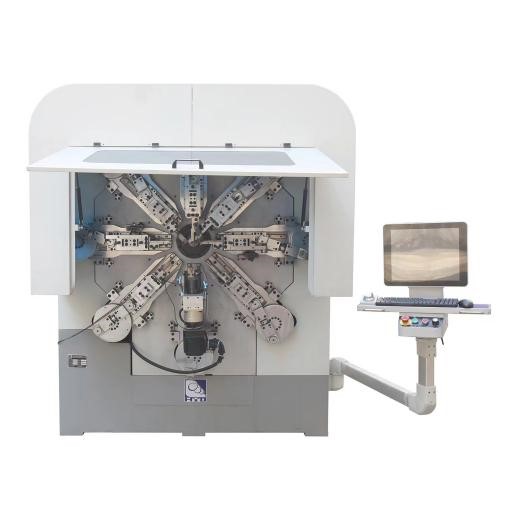

13 axis spring manufacturing machine

Name spring manufacturing machine
Model HYD-60T-13A
Wire Diameter 2.0-6.0mm
Number of Axes 13 Axes
Wiire Feed Roller 4 Pairs
Max Wire Feed Speed 80m/min
Max Wire Feed Speed ±0.2(Length)
Servo Motor Power 50.7KW
Reducer 11 Pcs
Decoiler 1000KG
Voltage 380V
Machine size 4000*2100*2300mm
Machine Weight 4500KG

13 axis spring machine features:

  • 1. The connecting rod without rocker arm design, the spring forming space is large, and the processing of some special-shaped springs is more convenient and fast.
  • 2. Using Japanese high precision servo motor, the line accuracy can be controlled within plus or minus 0.2MM.
  • 3. Can be installed servo shear, processing long products, can be directly cut, reduce the impact of cutting the mandrel, reduce the vibration of the machine, protect the tool and machine.
  • 4. The transfer motor is separated from the feed box, reducing the load of the feed box, the speed of the transfer line is faster, and the Angle of the transfer line is increased, and the space Angle is larger when the spring is formed.

Reviews

There are no reviews yet.

Be the first to review “13 axis spring manufacturing machine”

Your email address will not be published. Required fields are marked *

Unable to find spring machine that meet your needs, please let us know, we support processing customization

Frequently Asked Questions

Yes, our spring machine and bending machine, tempering furnace have CE certificate.

The standard voltage of our machine is 380V, and transformers can be equipped according to different voltages in each country.

Our company has 4 R&D personnel, which can be customized according to your needs.

Different countries have different trading methods, generally FOB and CIF, according to customer requirements to choose.

Our company has 3 full-time after-sales service personnel, professional answer customer feedback questions. We have a one-year warranty for the export of the machine. If there is a problem during the warranty period, we provide free accessories and video guidance for customers to disassemble and assemble. If there is a local agent, the agent will be arranged to go to the scene to guide and solve the problem.

Different models, the number of donated knives is also different, generally 4-10 sets of gifts.
